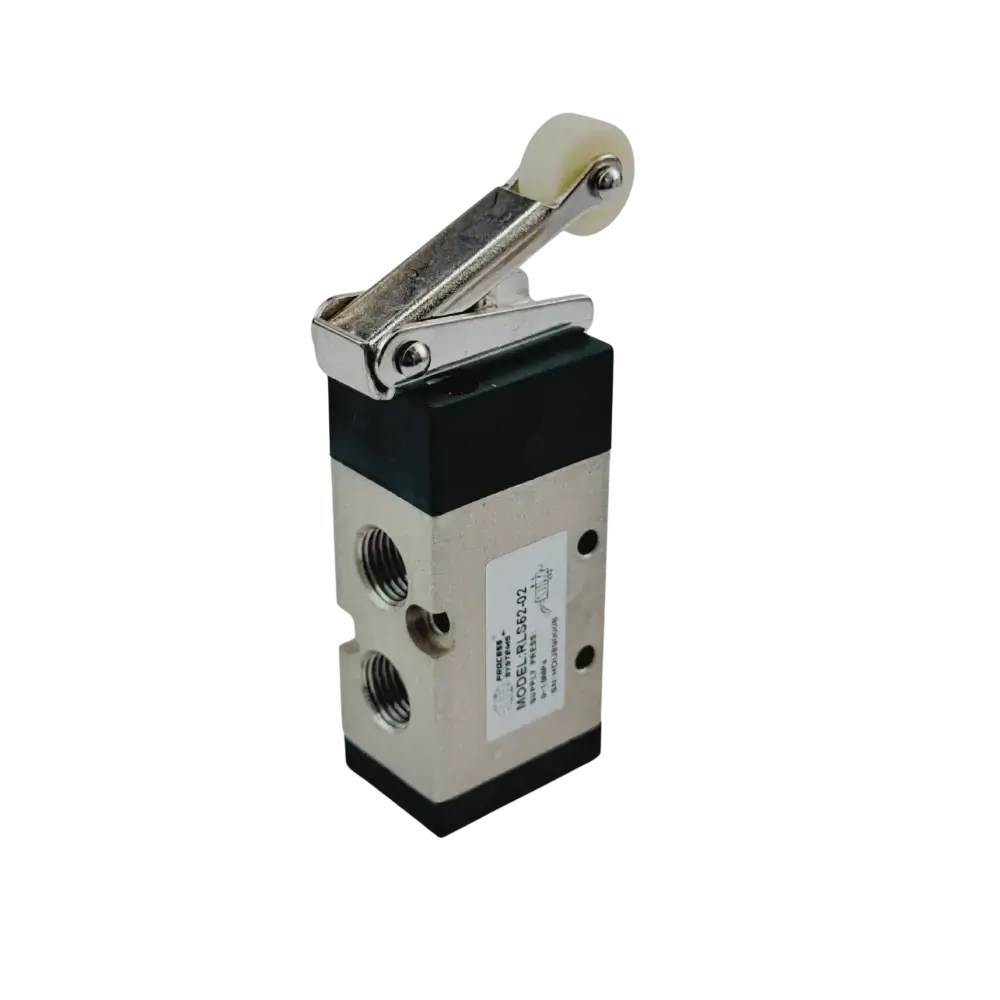

The RLS52 series are a five way two positon roller lever spring control valve. Ideal for controlling cylinders or pneumatic actuators by being triggered by something moving over the roller and pushing the lever down, once it is past the lever will spring return. Simple to use, install and maintain.

5 way 2 position roller valve

Specification RLS52-02
Port Size (BSPP) 1/4"
Exhaust Port Size 1/8”
Pressure Range 0 to 10 BAR
Max Inlet Pressure 10 BAR
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Lubrication Not Required
Applicable Medium Air

5 way 2 position roller valve

Size 1/4" BSP
Function 5 way 2 position roller lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
