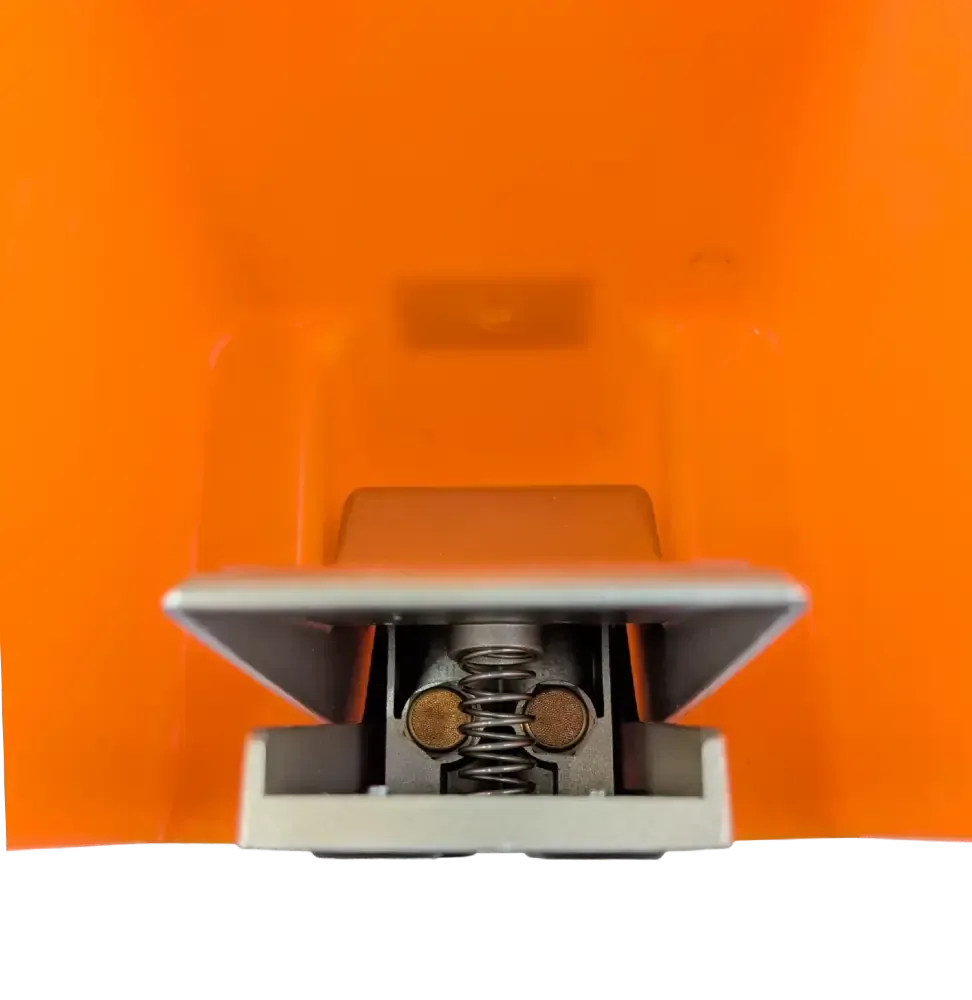

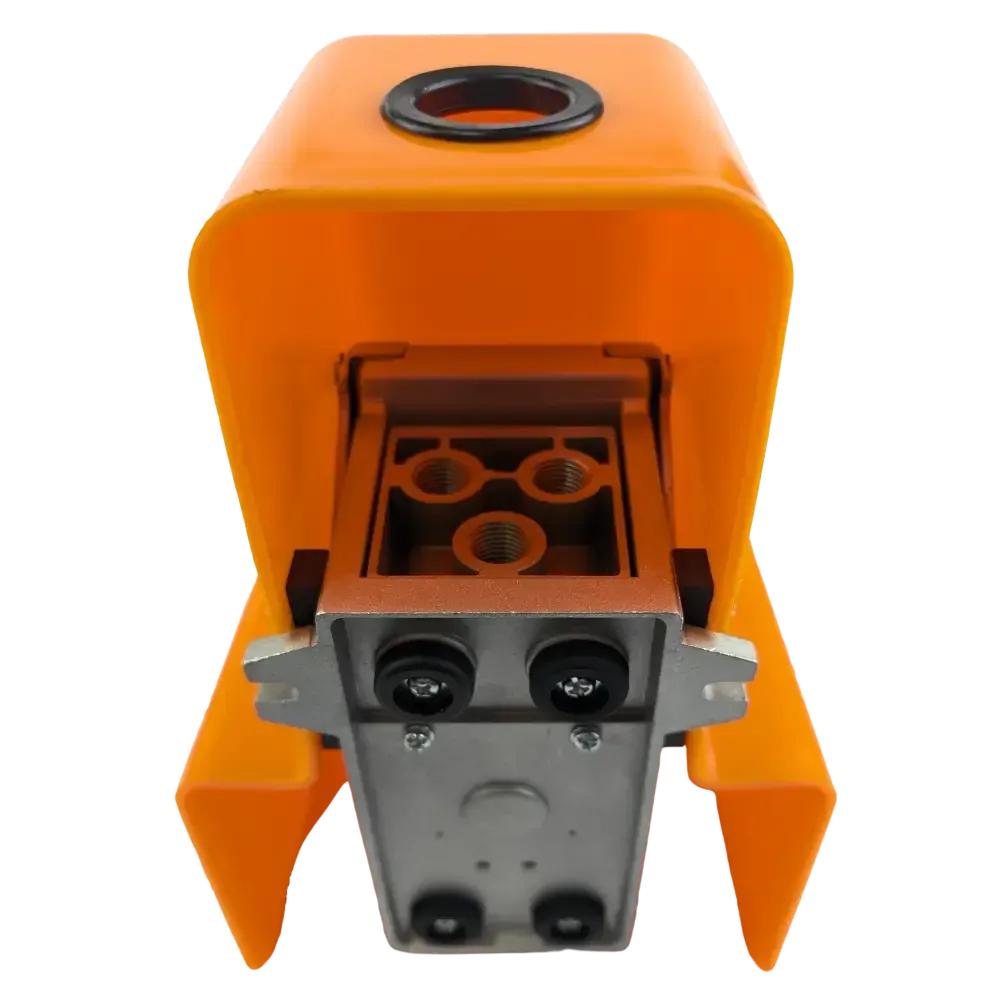

The FSG52 series are a five way two position foot control valve. Ideal for controlling cylinders or pneumatic actuators. Simple to use, install and maintain. Comes with orange guard to prevent accidental operation.

5 way 2 position foot spring valve

Specification FSG52-02
Port Size (BSPP) 1/4"
Function 5/2 Foot Spring
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminum
End Caps Reinforced Plastic
Guard Thermoplastic
Lubrication Not Required
Applicable Medium Air

5 way 2 position foot valve

Size 1/4" BSP
Function 5 way 2 position foot operated
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
