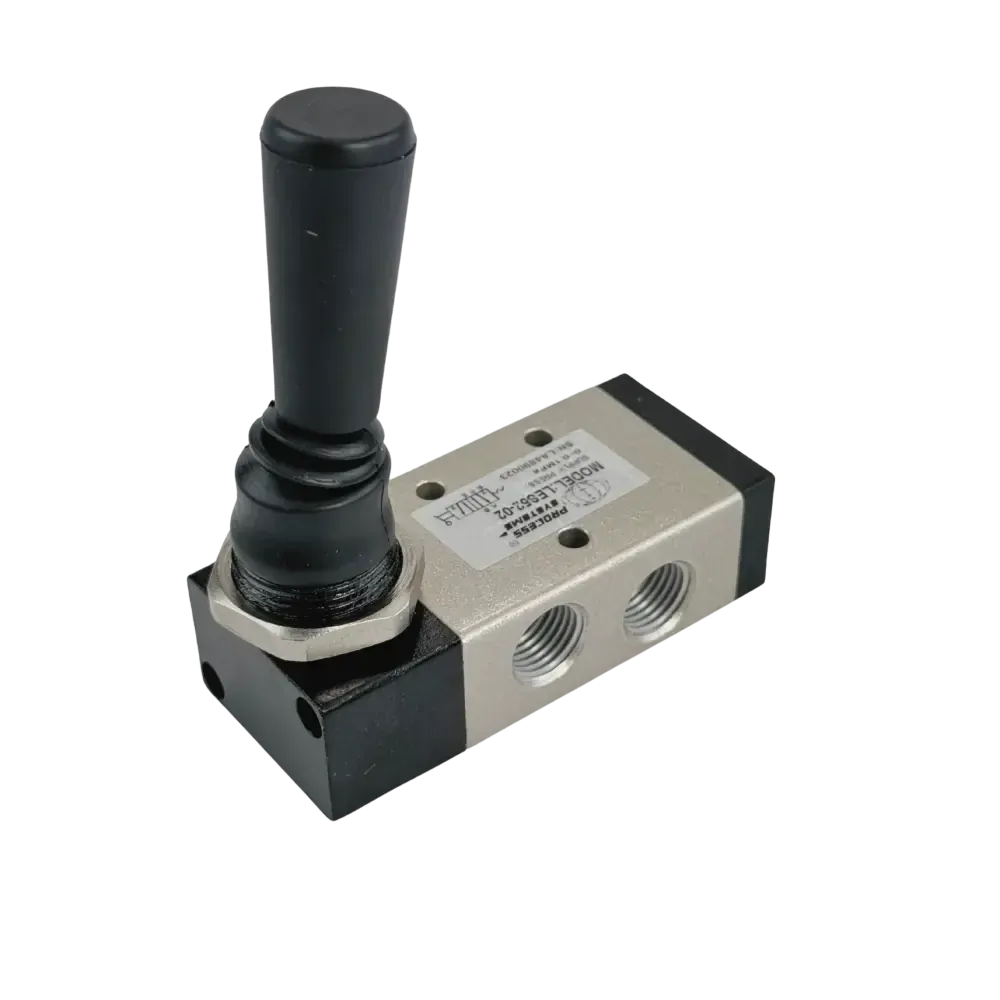

The LES52 series are a five way two joystick control, spring return valve. Ideal for controlling cylinders or pneumatic actuators simply push the lever one way and then release to return back to its resting position. Simple to use, install and maintain.

5 way 2 position lever spring valve

Specification LES52-02
Port Size (BSPP) 1/4"
Exhaust Size 1/8”
Function 5/2 Lever Spring
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Joystick Thermoplastic
Lubrication Not Required
Applicable Medium Air

5 way 2 position lever spring valve

Size 1/4" BSP
Function 5 way 2 position lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
