Full Stainless Steel 100mm glycerine filled pressure gauge with stainless steel internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatable gases and liquids.

Model Range
GAU100BS~1000 0 to 1000 kpa (0 to 140 PSI)
GAU100BS~1600 0 to 1600 kpa (0 to 230 PSI)
GAU100BS~2500 0 to 2500 kpa (0 to 360 PSI)

Size 100mm (4")
Accuracy +/- 1.0%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 316 Stainless Steel Case with Bayonnet Bezel
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube 316 Stainless Steel
Movement 316 Stainless Steel
Connection 316 Stainless Steel
Thread 3/8" BSPT
Scale Dual Scale kPa/PSI

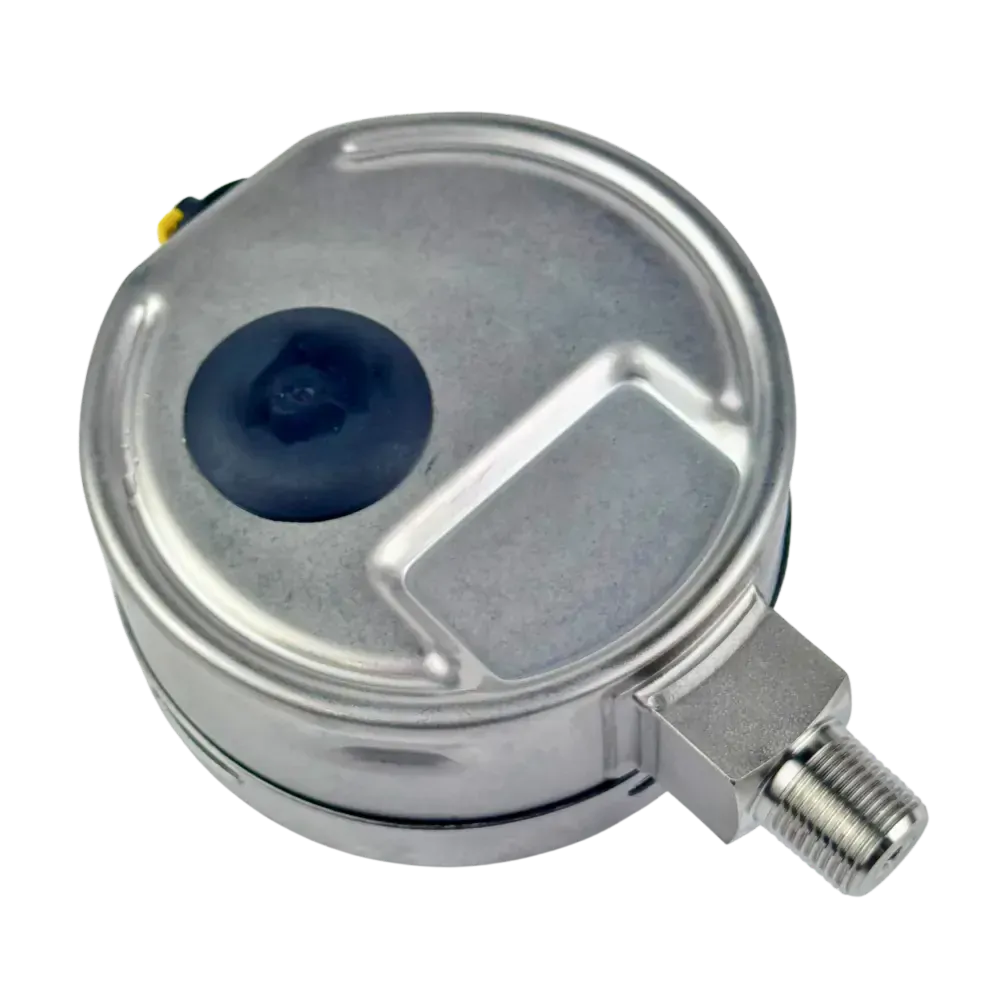

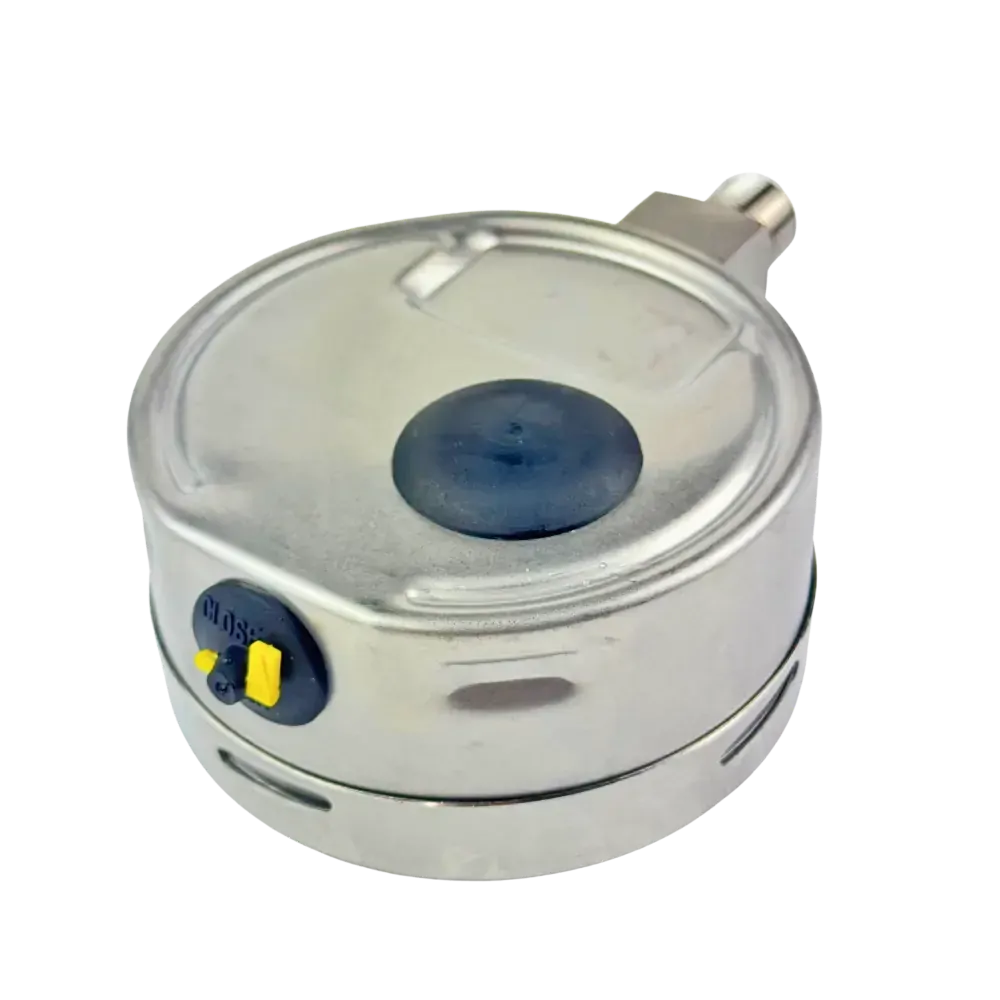

100mm Bottom Entry Gauge Stainless Steel

a b b1 b2 D1 D2 e f G SW
15.5 49.5 49.5 83 101 99 17.5 30 1/2" 22

All dimensions in mm unless shown otherwise.

100mm Full Stainless Steel Bottom Entry Pressure Gauge Construction

Pressure Range -100 kpa to 2500 kpa
Body 316 Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 3/8" BSPT Bottom Entry
Factory Accredited CE, ISO 9001, TUV
