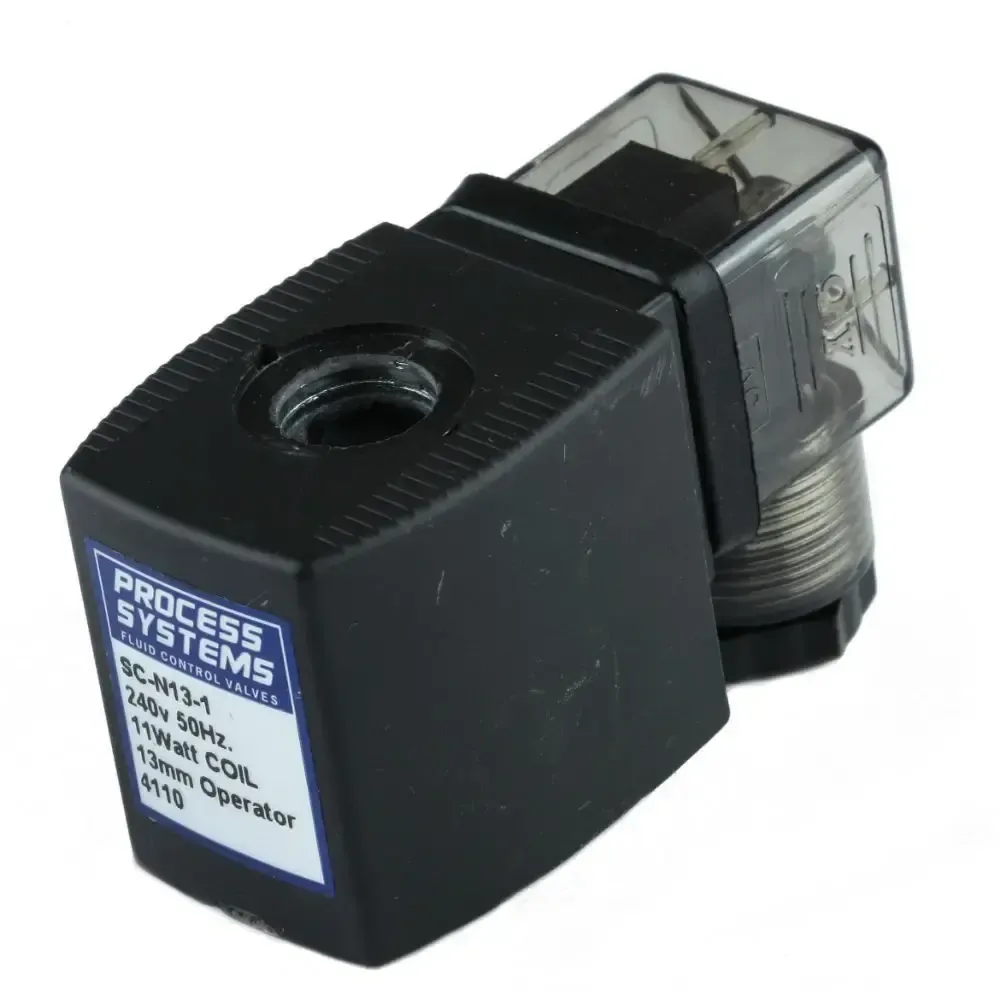

Solenoid Coil and DIN Plug to suit 13.2mm operator. It can suit any brand solenoid valve as long as it complies to the specs of this coil, our models are listed below. Class H closed wound insulation which results in a maximum operating temperature of 180°C and max ambient temperature of 50°C.

Valve Series Description
B36 Brass 2/2 General Purpose Differential Normally Open (up to 1” old style)



Voltage Resistance (Ω) Current (A) Power Temperature
DC12V 10.4 1.1 14W 90
DC24V 40 0.6 14.5W 88
AC24V 8.4 0.82 19.5VA 60
AC110V 280 0.121 13.7VA 62
AC240V 1100 0.066 15.6VA 61

*Above measurements are in its cold state @ 15℃

13.2mm Solenoid Valve Coil

Dimension Measurement (mm)
S 13.2
H 40.4
W 35.8
D 47.2

Operator Size 13.2mm
Watts 15
Volt Amps 11
Voltage All
Insulation Class H

Rating IP65
