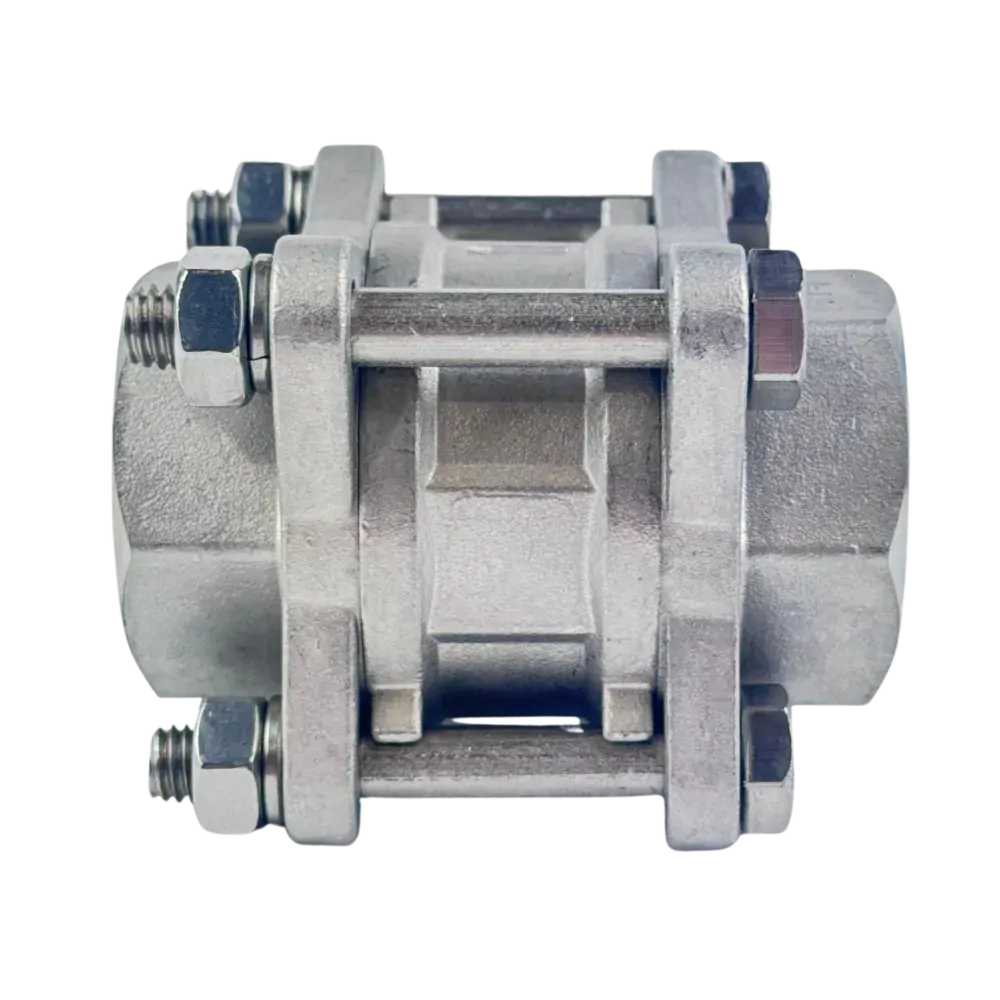

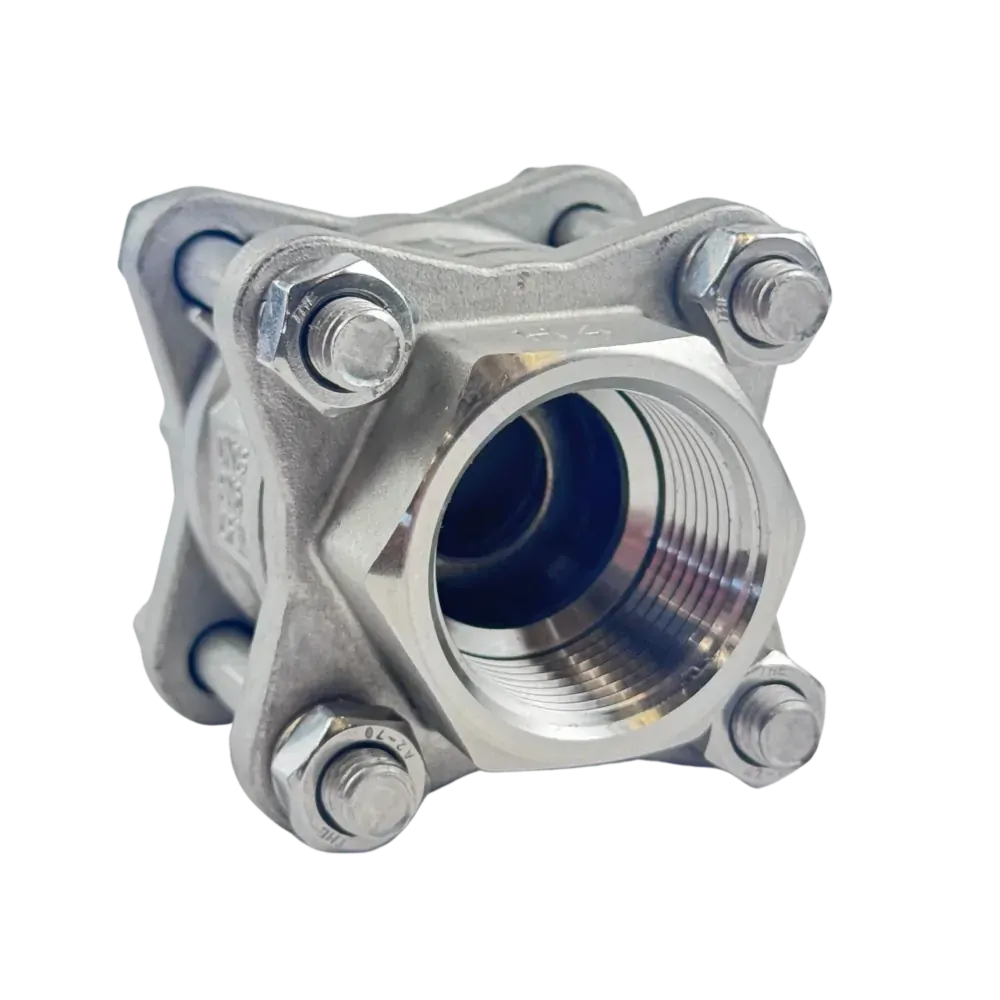

316 Stainless Steel 3 piece BSP threaded in line lift check valve. Suitable for a wide range of media including steam, water, oil and many others. Can be installed in any orientation as it has a spring backing. Ideal for use in fixed pipelines as the valve can be removed by undoing the tie rods to allow for maintenance and cleaning without unscrewing the threads. Specifically designed check valve for long life, simple operation and easy maintenance. Please bear in mind that this is a metal to metal seat so a bubble tight seal will not be formed at lower pressures.

Model Size (BSP) DN Pressure Range Temperature Weight (KG) CV Cracking Pressure (kPa)
ICS3-04 1/2" 15 0 to 63 BAR -20°C to 180°C 0.37 13 4 ~ 6
ICS3-05 3/4" 20 0 to 63 BAR -20°C to 180°C 0.69 32 3 ~ 5
ICS3-06 1" 25 0 to 63 BAR -20°C to 180°C 0.75 67 3 ~ 5
ICS3-07 1 1/4" 32 0 to 63 BAR -20°C to 180°C 1.15 115 2.8 ~ 3.5
ICS3-08 1 1/2" 40 0 to 63 BAR -20°C to 180°C 1.51 183 2.5 ~ 3.5
ICS3-09 2" 50 0 to 63 BAR -20°C to 180°C 2.23 365 2.5 ~ 3


3 piece inline check valve temperature vs temperature

3 piece in line stainless steel check valve

Model Size DN d L CV
ICS3-04 1/2" 15 14 56.5 13
ICS3-05 3/4" 20 18.5 77 32
ICS3-06 1" 25 24 74 67
ICS3-07 1 1/4" 32 32 83 115
ICS3-08 1 1/2" 40 38 92 183
ICS3-09 2" 50 49 110 365

3 piece in line stainless steel check valve

Number Part Material
1 Bolt 304 SS
2 Spring Washer 304SS
3 Nut 304SS
4 Cap ASTM A351 CF8M
5 Gasket PTFE
6 Body ASTM A351 CF8M
7 Insert ASTM A276 304
8 Spring ASTM A276 304
9 Disc ASTM A351 CF8M

Size 1/2" to 2" BSP
Body 3 piece 316 Stainless Steel
Seat Metal
Pressure Range 0 to 63 BAR
Temperature -20°C to 180°C
