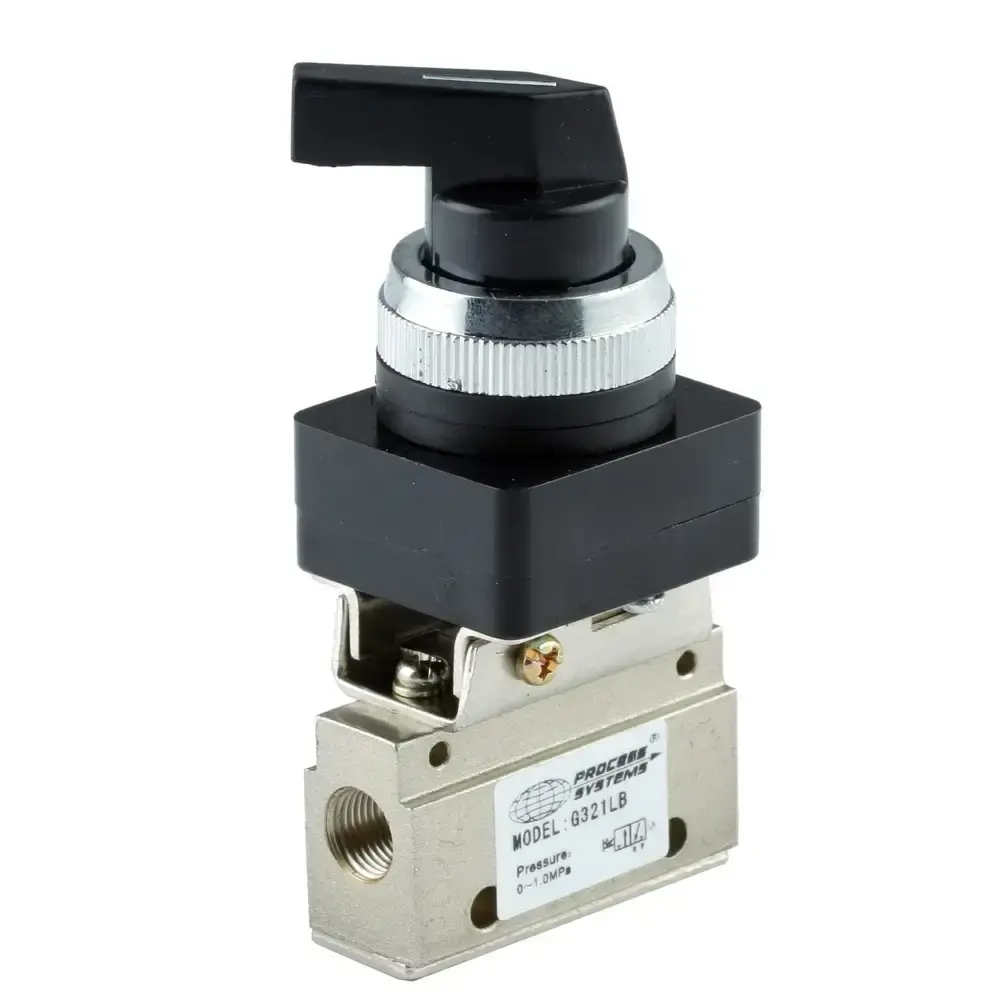

The ROL32 series are a three way two position rotary lever valve. The lever is turned and it will stay in that position until it is turned back. Great for use as a pilot or control valve in a pneumatic system or on spring return/single acting cylinders or actuators. Simple to use, install and maintain.

3 way 2 position rotary lever valve

Specification ROL32-01 ROL32-02
Port Size G1/8” G1/4”
Button Colour Black Black
Pressure Range 0 to 10 BAR (147 psi)
Max Inlet Pressure 10 BAR (147 psi)
Medium Temperature -5 to 60°C
Body Die Cast Aluminium
End Caps Reinforced Plastic
Button Thermoplastic (Black Only)
Lubrication Not Required
Applicable Medium Air

3/2 Roller Lever Valve 1/8"

3/2 Roller Lever Valve 1/4"

Size 1/8" to 1/4" BSP
Function 3 way 2 position rotary lever
Body Aluminium
Pressure Range 0 to 10 BAR
Media Air
