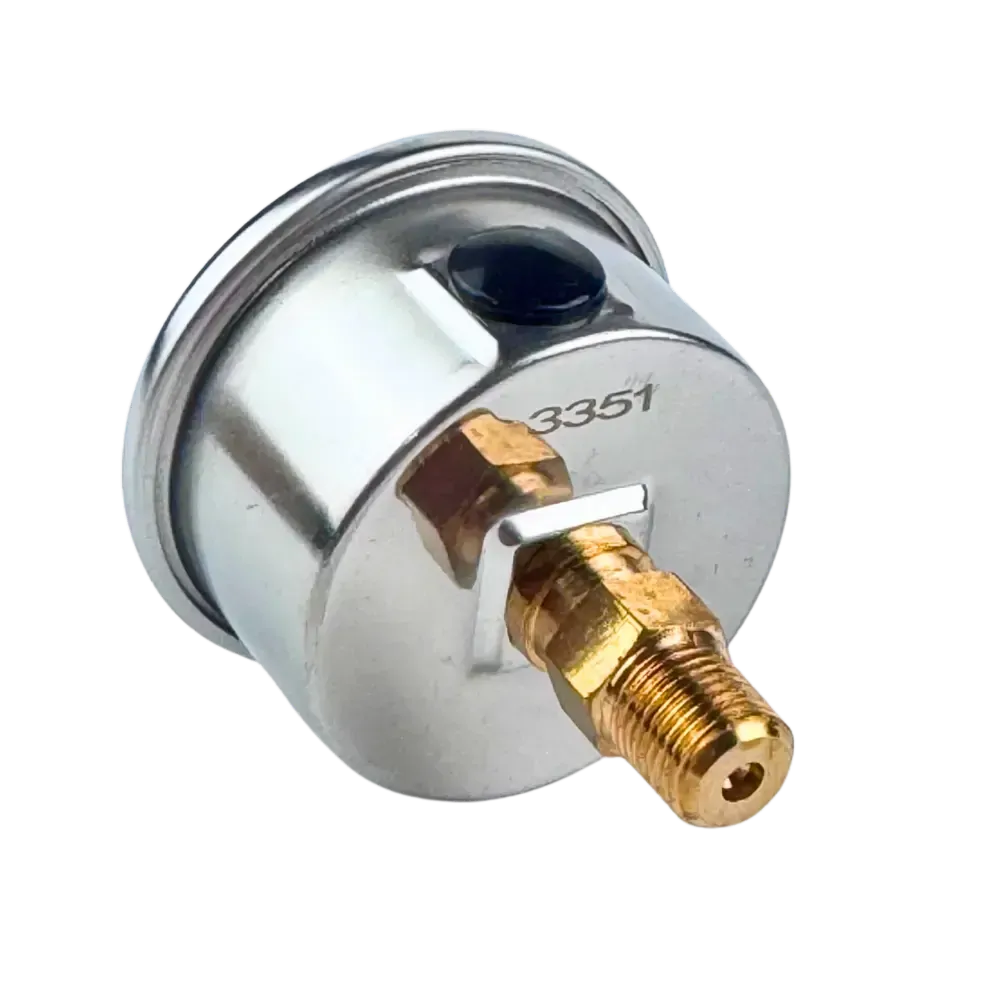

40mm 304 Stainless Steel Case glycerine filled rear entry pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Operating temperature of -20°C to 60°C. For use on compatable gases and liquids. All pressure guages are calibrated and tested to ensure accuracy and reliability.



Size 40mm (1 1/2")
Accuracy +/- 1.6%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 304 Stainless Steel Case and crimped ring
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube Copper alloy
Movement Copper alloy
Connection Brass
Thread BSPT
Scale Dual Scale Kpa/Psi

Pressure Range 0 kpa to 1000 kpa
Body Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 1/8" BSP Rear Entry
Factory Accredited CE, ISO 9001, TUV
