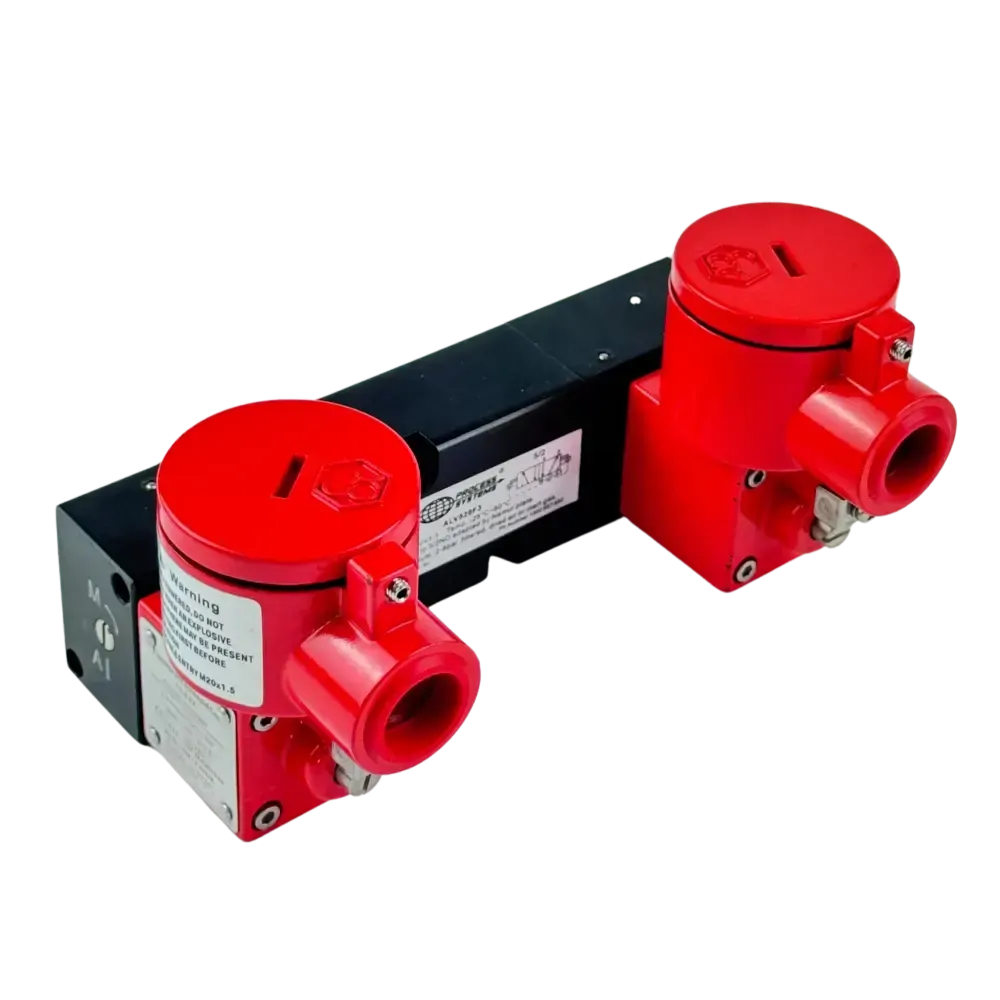

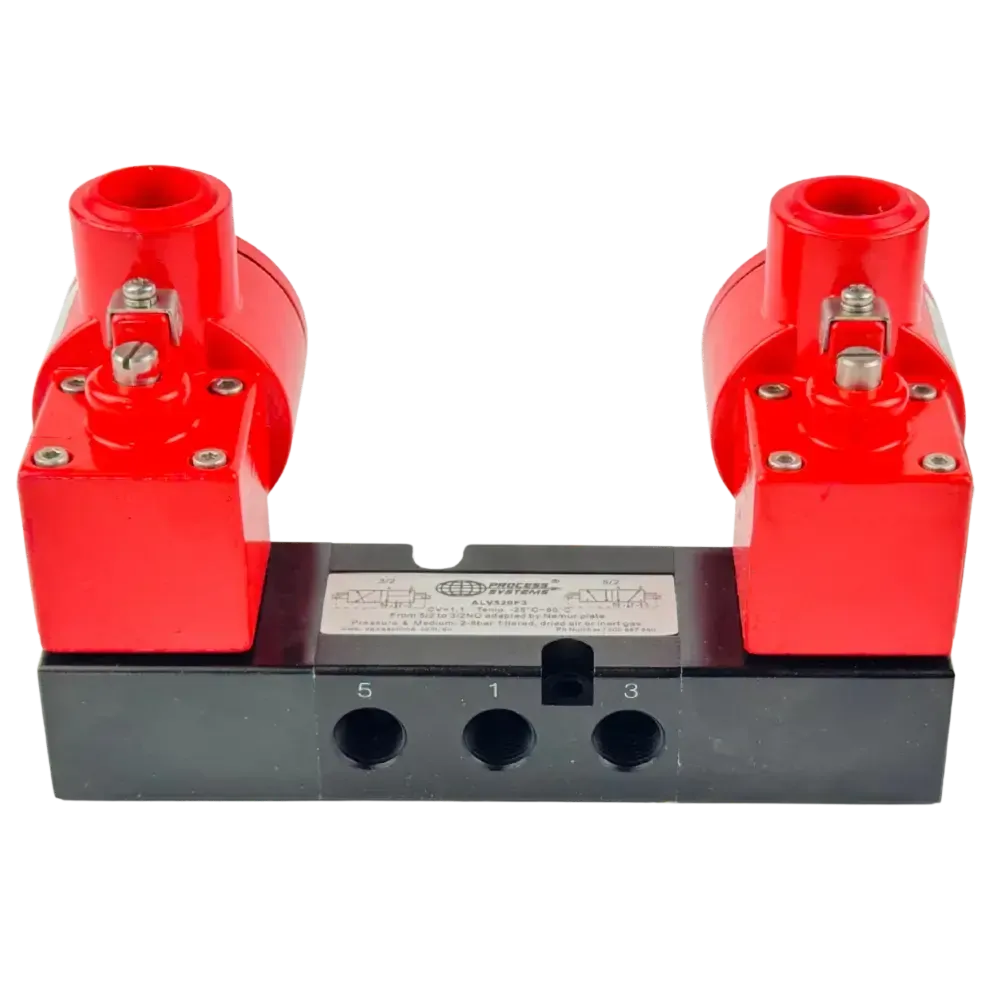

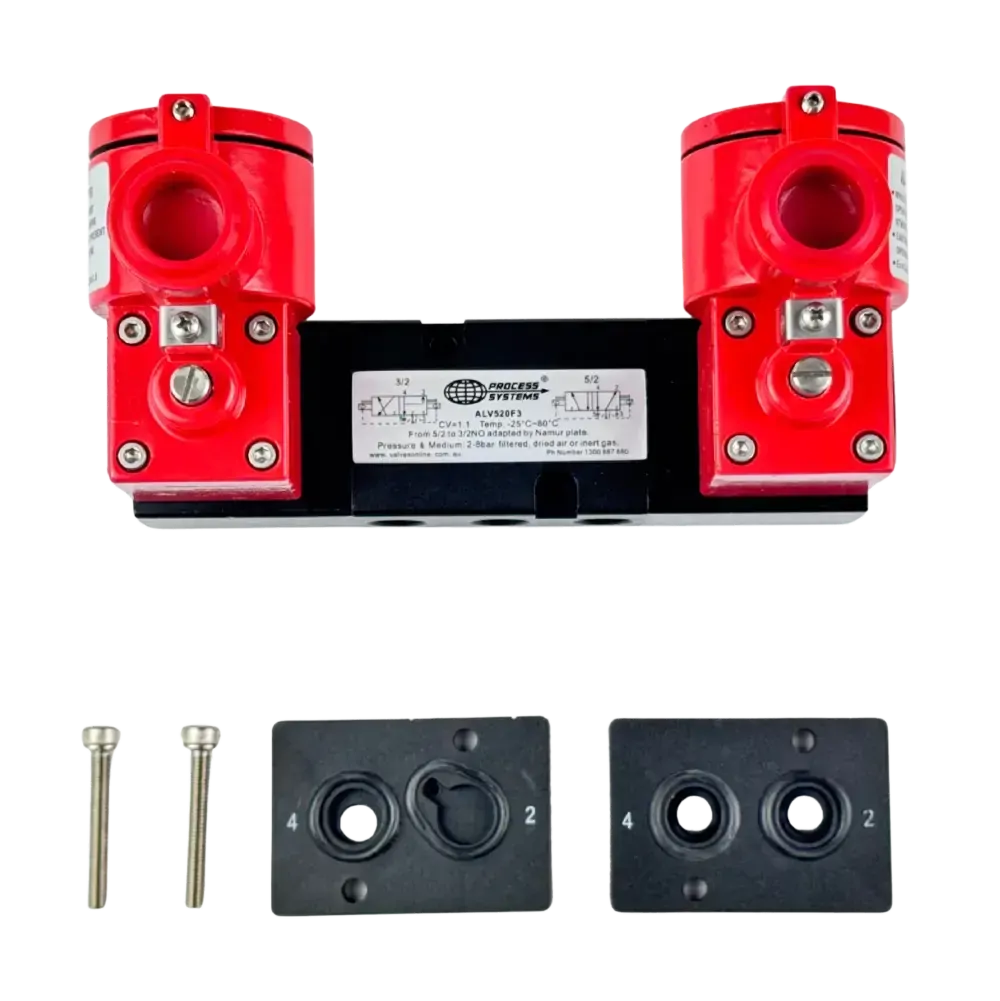

Our 5 way 2 position exd approved namur solenoid valve is suitable for hazardous areas where pneumatic actuators need a namur solenoid valve to operate. Can be adapted from 5/2 to 3/2 if needed however we recommend using the 5/2 configuration even for spring return actuators. Threads conform to ISO 7.1 Sealing Threads. IECEx Cert No. IECEx CQM 12.0022X (Ex d II C T6 Gb), NEPSI Cert No. GYB17.1935X (Ex d II C T6 Gb; Ex tD A21 IP6X T85°C).

Model Voltage Function Port Size Orifice Cv Media Temp Media Pressure
ALV520F3-C5-1 240v AC Solenoid/Solenoid 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV520F3-C5-2 110v AC Solenoid/Solenoid 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV520F3-C5-8 24v DC Solenoid/Solenoid 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR

Exd 5/2 Solenoid Valve Wiring Diagrame

Size 1/4" BSP
Function 5 way 2 position double solenoid namur with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
