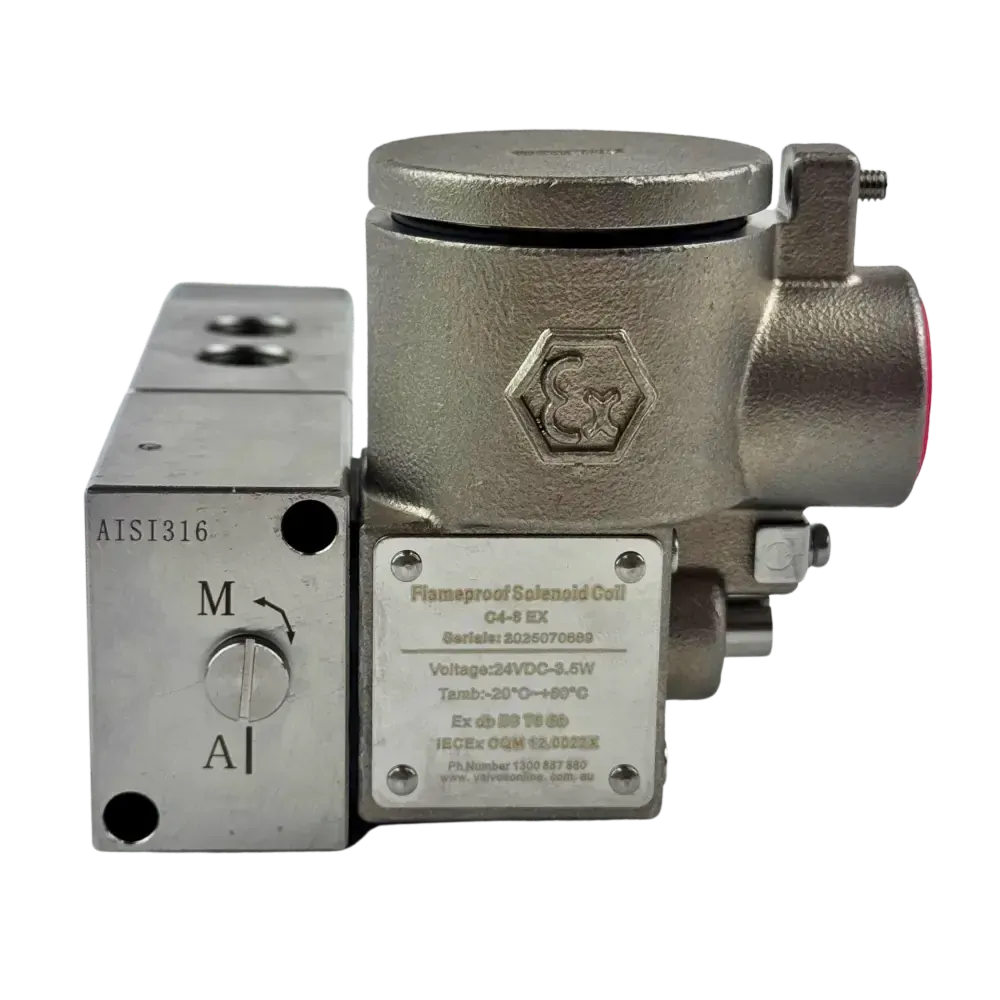

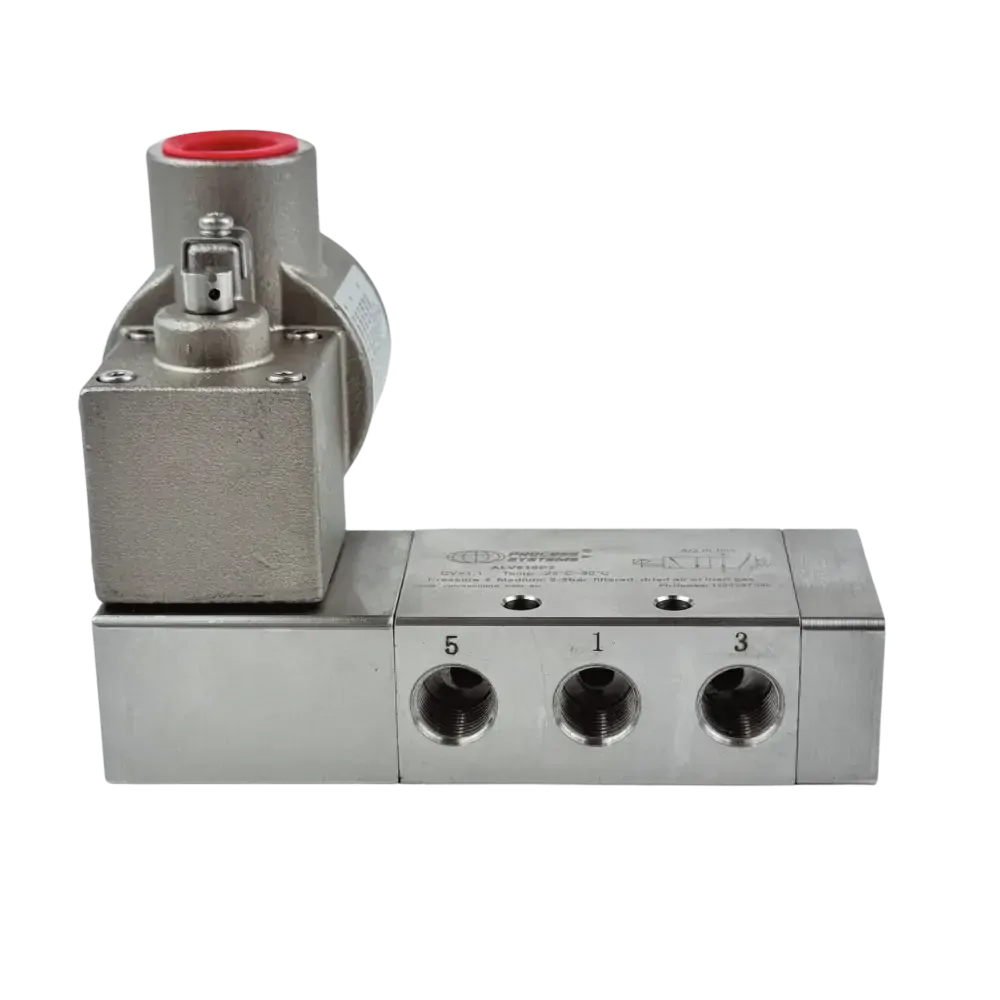

Our 5 way 2 position stainless steel exd approved solenoid valve is suitable for hazardous areas where there is a need for a solenoid valve to operate. Threads conform to ISO 7.1 Sealing Threads. IECEx Cert No. IECEx CQM 12.0022X (Ex d II C T6 Gb), NEPSI Cert No. GYB17.1935X (Ex d II C T6 Gb; Ex tD A21 IP6X T85°C).

Model Voltage Function Port Size Orifice Cv Media Temp Media Pressure
ALV610P2-C4-1 240v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV610P2-C4-2 110v AC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR
ALV610P2-C4-8 24v DC Solenoid/Spring 1/4" 6mm 1.1 -25°C to 80°C 2 to 8 BAR

Stainless Steel 5/2 Exd Solenoid Valve Wiring Diagrame

Size 1/4" BSP
Function 5 way 2 position solenoid/spring with manual override
Valve Operation Servo Assisted
Body 316 Stainless Steel
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
