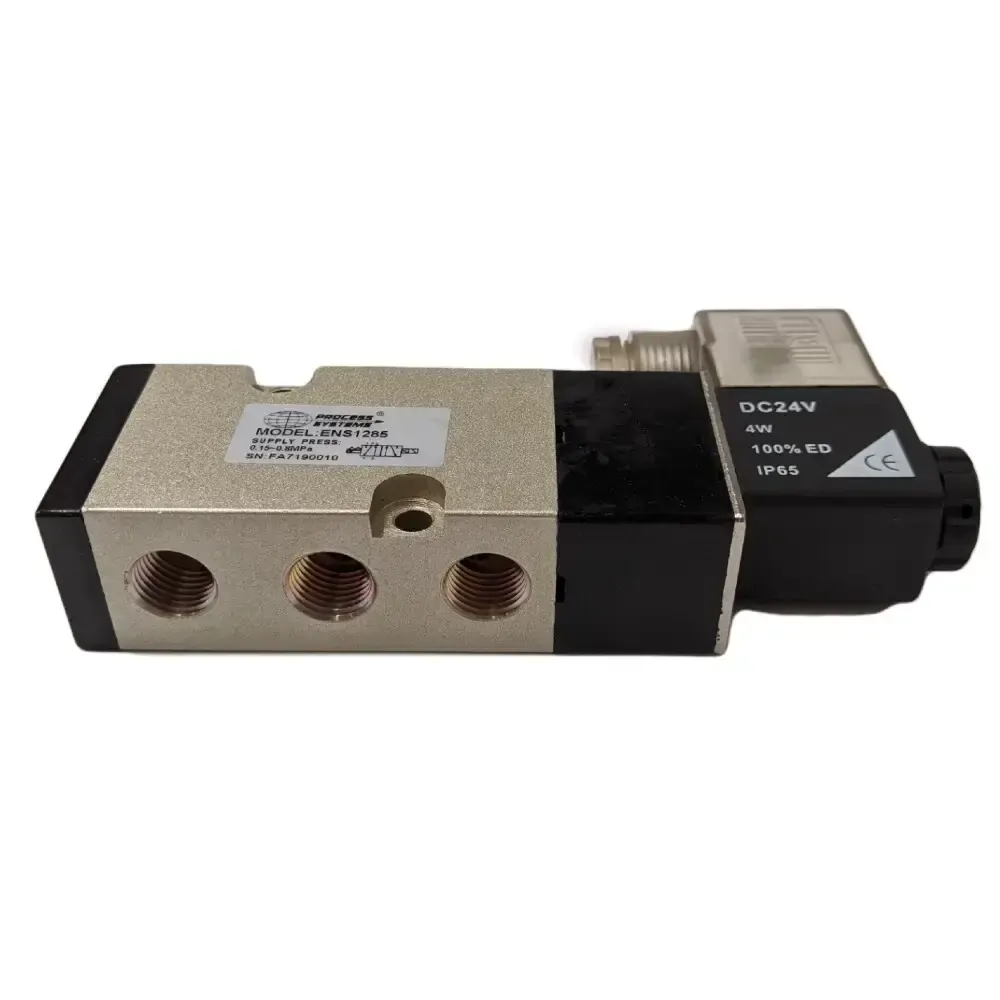

5 way 2 position solenoid valve with namur interface making it suitable for direct mounting onto pneumatic actuators (both double acting and spring return). Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil (AC 5.5 VA, DC 4.8 Watts). Available in all voltages. Comes wtih mounting screws. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size Orifice ømm CV Pressure Media Temp Weight Kg Coil specifications
ENS12*5 1/4" BSP 5 1.4 1.5 to 8 BAR 5°C to 80°C 0.5 SC-A1
5.5 Volt Amps
4.8 Watts
Class F Insulation
100% ED

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

Namur Solenoid Valve

Item Material
Body Aluminium
Spool Aluminium
Operator Stainless Steel
Seals NBR
Ends POM

Size 1/4" BSP Only
Function 5 way 2 position solenoid/spring namur with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
