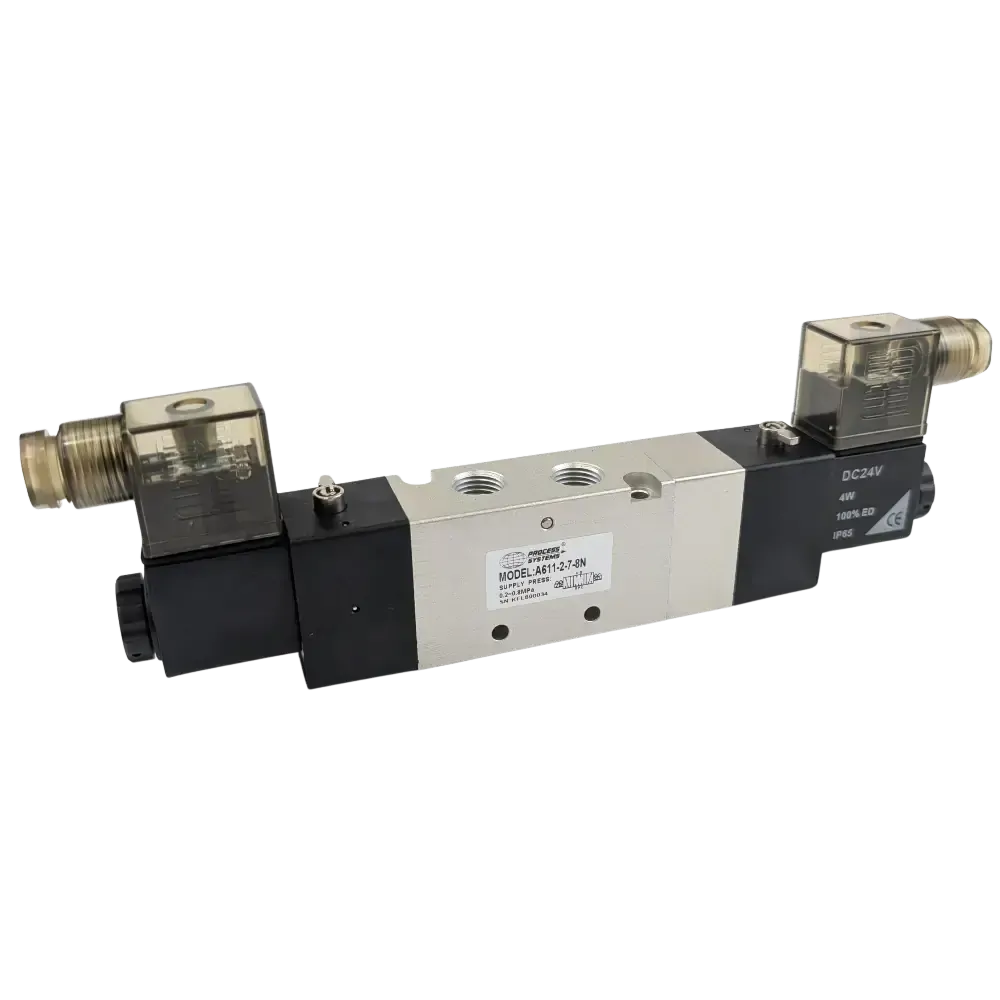

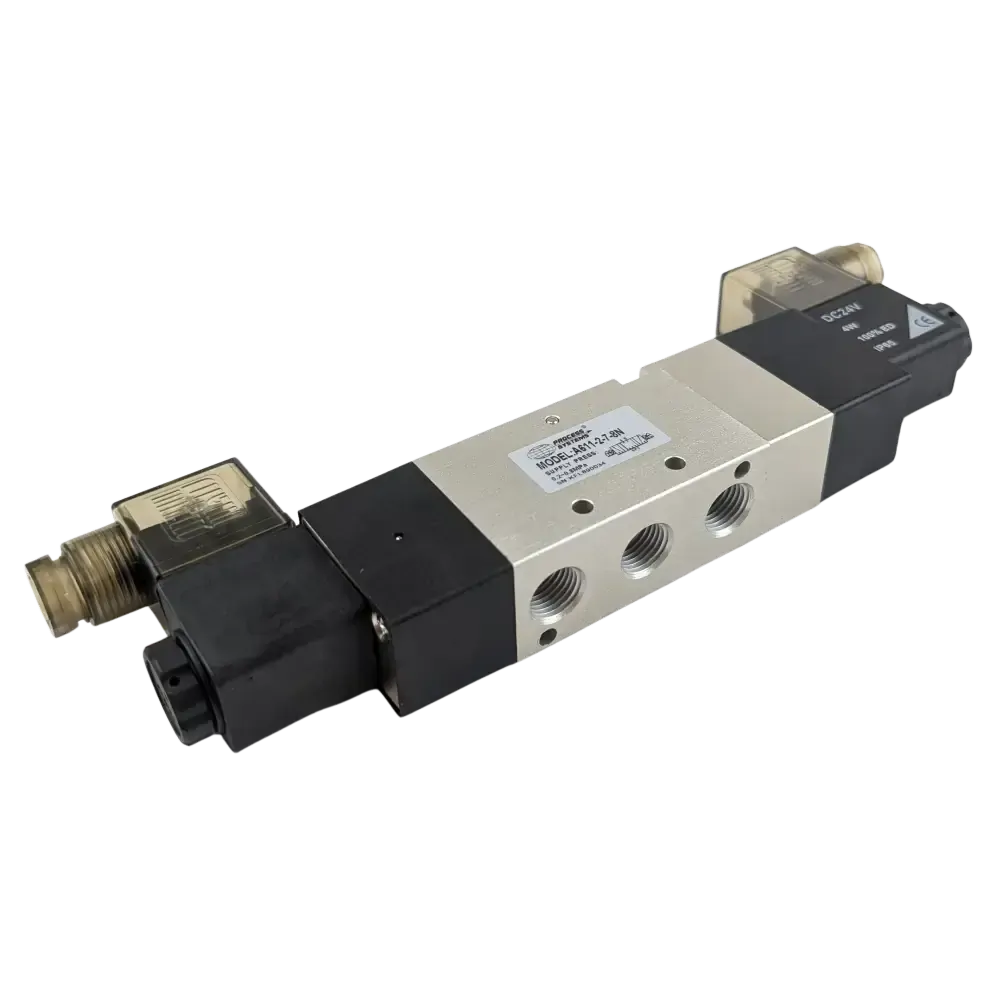

Great for controlling cylinders and pneumatic actuators.The three position function allows the user to 'inch' or creep the actuator or cylinder. IP65 weatherproof coil an LED DIN plug. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size (BSP) Orifice ømm CV Pressure Media Temperature Weight Kg Coil Specifications
A611-2-7-*NM 1/4 7 2 1.5 to 8 Bar 5°C to 80°C 0.35 SC-A1
5 Watts
6 Volt Amps
Class H Insulation
100% Ed
A611-3-7-*NM 3/8 7 2 1.5 to 8 Bar 5°C to 80°C 0.35
A611-4-8-*NM 1/2 8 2.8 1.5 to 8 Bar 5°C to 80°C 0.6

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC

5/3 way solenoid valve closed centres dimensions

Model G(BSP) A B C D E F G H Inlet & Outlet Ports Exhaust Ports K L M
A611-1-5-1N 1/8" 38 17 3.3 20 196 20 4.3 35 1/8" 1/8" 22 36 68
A611-2-7-1N 1/4" 50 20 4.3 24 215 24 4.3 40 1/4" 1/4" 27 45 70
A611-3-7-1N 3/8" 50 20 4.3 24 215 24 4.3 40 3/8" 1/4" 27 45 70
A611-4-8-1N 1/2" 72 27 4.3 36 247 28 5.5 50 1/2" 1/2" 34 63 74

All dimensions in mm unless shown otherwise.

Size 1/4" to 1/2" BSP
Function 5 way 3 position (closed centres) double solenoid with manual override
Valve Operation Servo Assisted
Body Aluminium
Seat NBR
Pressure Range 1.5 to 8 BAR
Media Air
