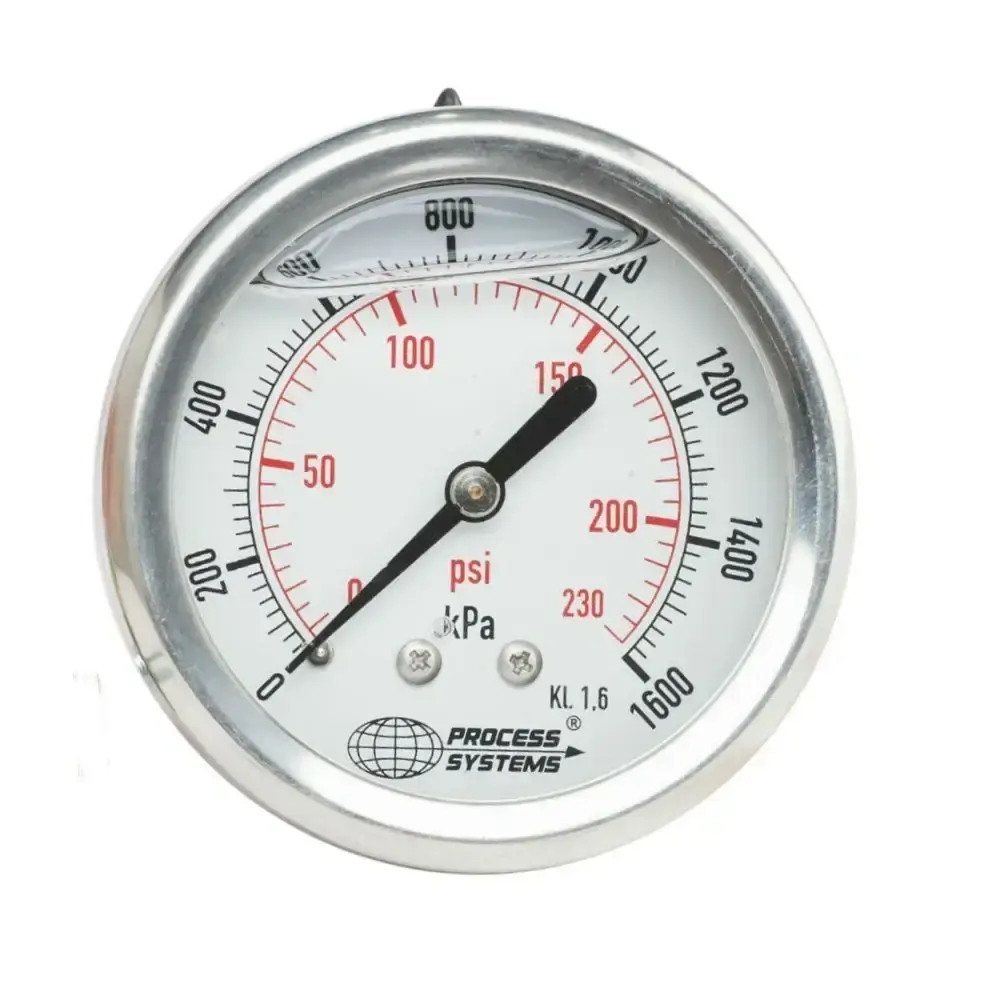

63mm 304 Stainless Steel Case glycerine filled rear entry pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Operating temperature of -20°C to 60°C. Comes with removeable panel mount clamp to give panel mounting option. For use on compatable gases and liquids. All pressure guages are calibrated and tested to ensure accuracy and reliability.

Model Range
GAU63R~-100 -100 to 0 kpa vacuum
GAU63R~-100C -100 to 1600 kpa
GAU63R~-100 0 to 100 kpa
GAU63R~200 0 to 200 kpa
GAU63R~400 0 to 400 kpa
GAU63R~600 0 to 600 kpa
GAU63R~800 0 to 800 kpa
GAU63R~1000 0 to 1000 kpa
GAU63R~1600 0 to 1600 kpa
GAU63R~2500 0 to 2500 kpa
GAU63R~4000 0 to 4000 kpa

Size 63mm (2 1/2")
Accuracy +/- 1.6%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 304 Stainless Steel Case and crimped ring
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube Copper alloy
Movement Copper alloy
Connection Brass
Thread BSPT
Scale Dual Scale Kpa/Psi

63mm Stainless Steel Rear Entry Pressure Gauge

Pressure Range -100 kpa to 4000 kpa
Body Stainless Steel
Function Dual Scale Kpa/PSI glycerine filled pressure gauge
Connection 1/4" BSPT Rear Entry
Factory Accredited CE, ISO 9001, TUV
