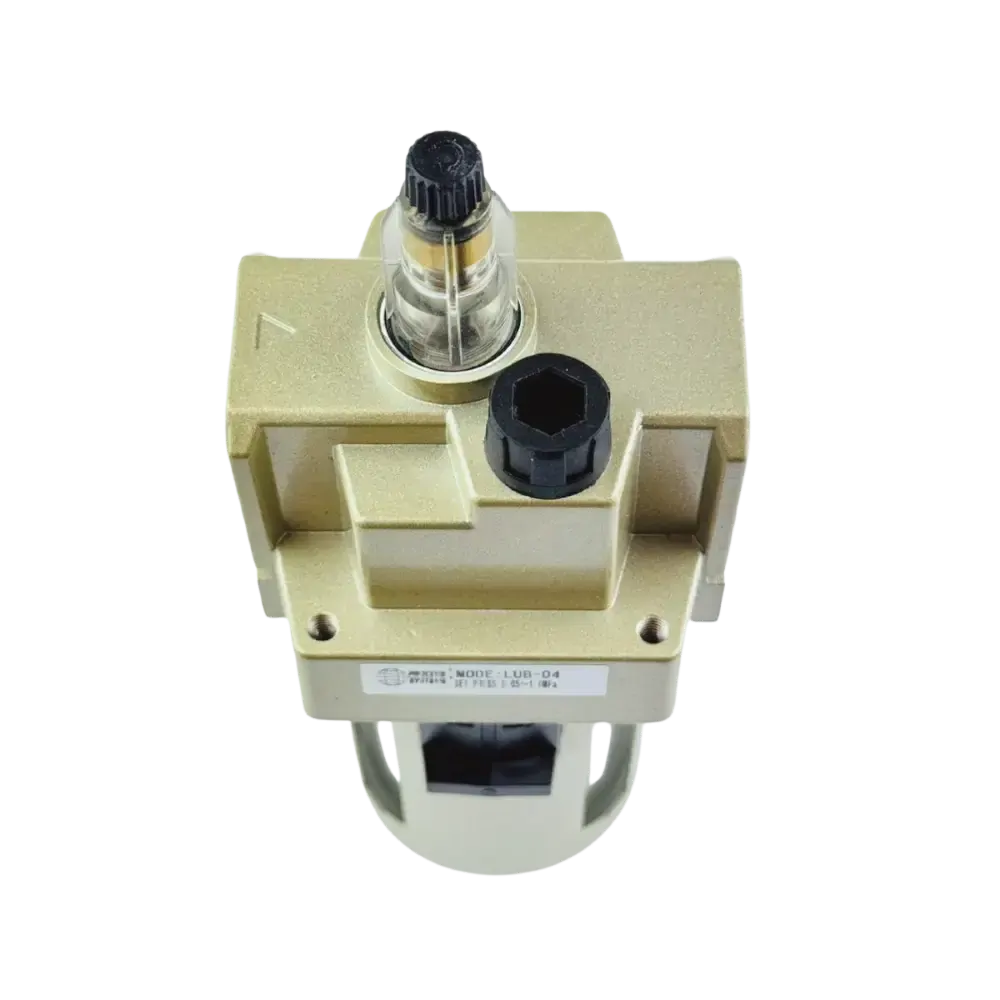

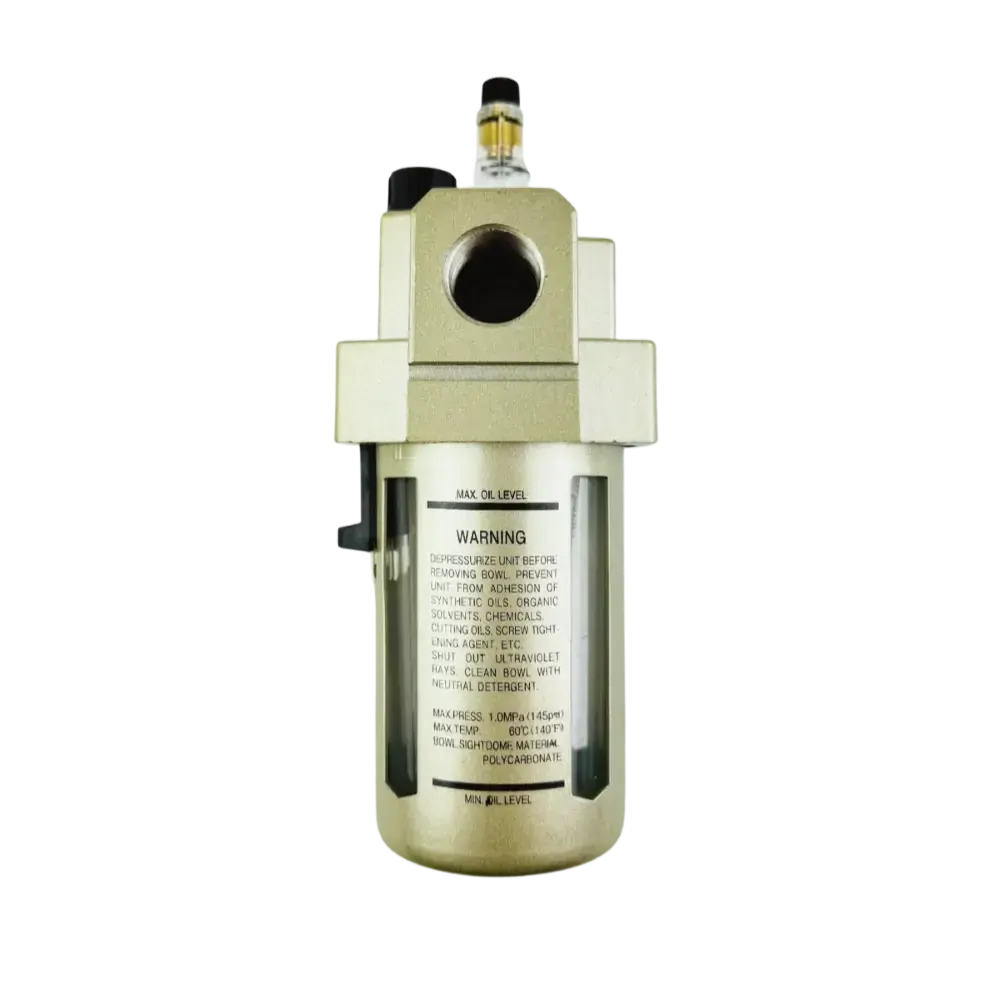

These lubricators work by emitting a micro fog into the air stream which preserves, prolongs and enhances the performance of down stream machinery. The amount of lubrication emitted is adjustable and all models include mounting bracket (except 1 1/2" & 2"). Easy to install, maintain and refill. Comes with polycarbonate bowl guard with sight glass.

Specification LUB-02 LUB-03 LUB-04 LUB-05 LUB-06 LUB-08 LUB-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 800 1700 5000 7000 7000
Max Pressure 8 Bar (118 psi)
Medium Temperature 0 to 60°C
Media Air
Lubricating Oil ISOVG32 or Equivalent
Drops per minute 0 to 120 Drops per minute
Construction Die Cast Aluminium
Bowl Material Polycarbonate
Bowl Guard Standard
Min Flow for Oil Drip 15L/min 30L/min 50L/min 190L/min 190L/min
Lubricating Oil Capacity 25 cm³ 50 cm³ 130 cm³ 400 cm³

Air Line lubricator

Model A B C D E F G H I J M
LUB-02 40 122 38 40 27 8.4 G1/4” 5.4 30 22 2.3
LUB-03 53 142 38 53 40 8 G3/8” 6.5 41 23 2.3
LUB-04 70 177 41 70 54 10.5 G1/2” 8.5 50 26 2.3
LUB-05 70 177 41 70 54 10.5 G3/4” 8.5 50 26 2.3
LUB-06 90 254 45 90 66 13 G1” 11 70 35 3.2

 Airline Lubricator

Model d A D D1 L0 L1 L2
LUB-08 G1-1/2” 115 Ø90 Ø110 32 32 105
LUB-09 G2” 115 Ø90 Ø110 32 32 105
All dimensions in mm unless shown otherwise.

Size 1/4" to 2" BSP
Function Lubricator
Body Die Cast Aluminium
Pressure Range 0 to 8 BAR
Media Air
