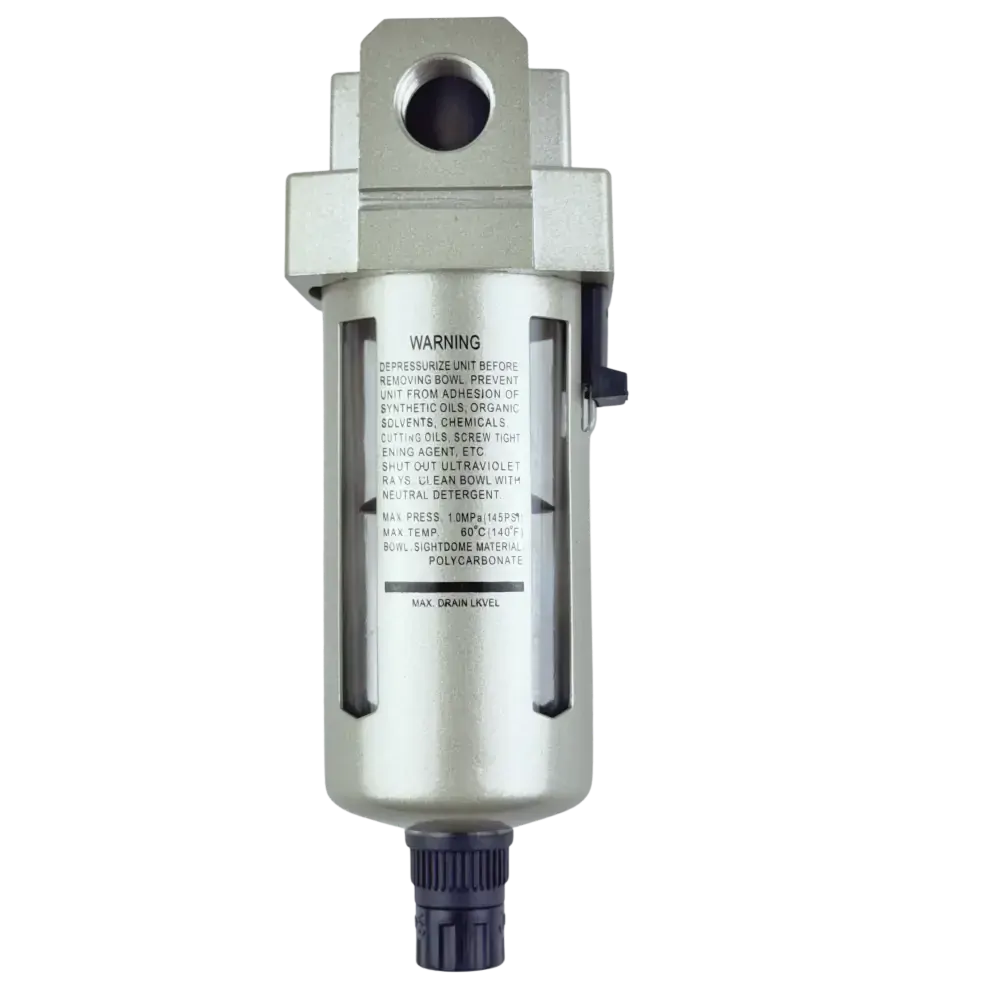

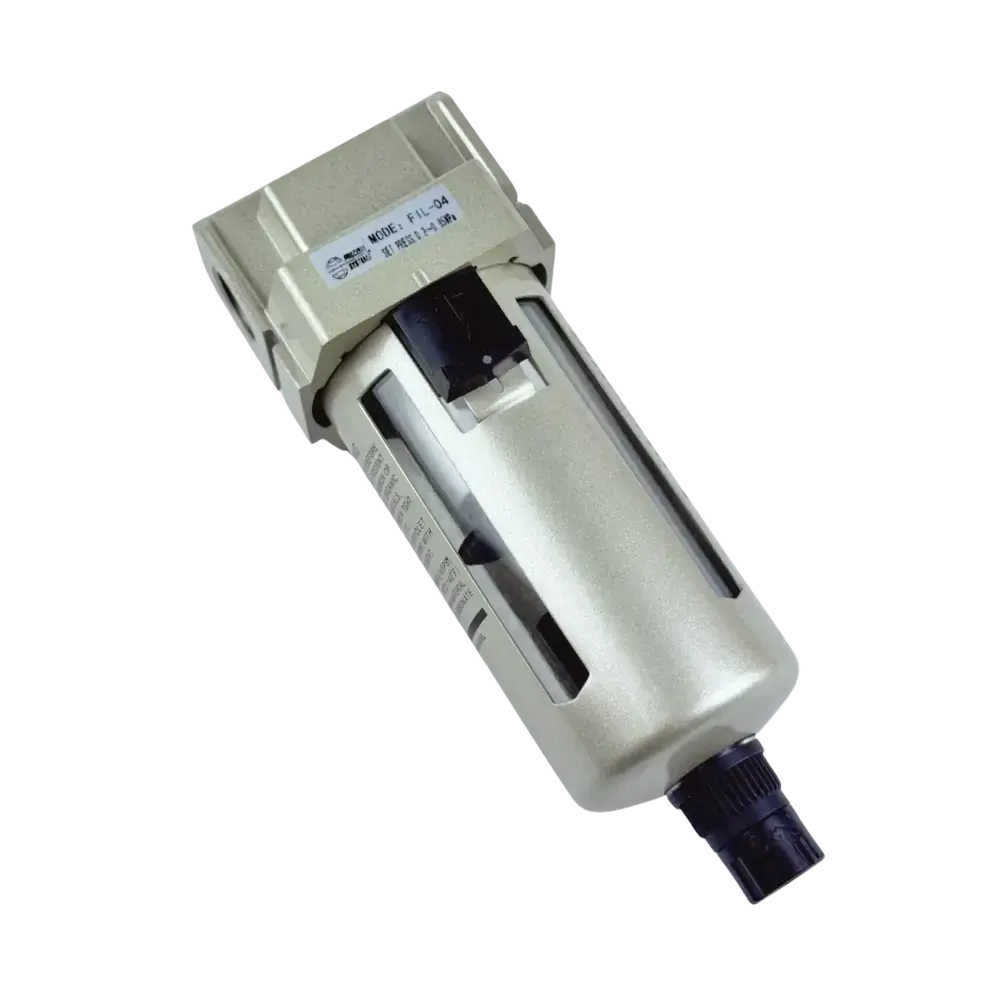

Simple and effective way to filter your air, removing water, oil and other suspended debris. Offers energy savings, high flow rates and ease of use. Easy to install and maintain. All units come with mounting bracket, auto drain and polycarbonate bowl guard with sight glass. *Please note that you need a 2 Bar differential (30psi) to seat the drain to the filter upon start up so if you are running a very low pressure system please ensure you have this.

Specification FIL-02 FIL-03 FIL-04 FIL-05 FIL-06 FIL-08 FIL-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 750 1500 4000 7000 7000
Pressure Range 2 to 8.5 Bar
Medium Temperature 0 to 60°C
Filter Size 5µm 50µm
Media Air
Construction Die Cast Aluminium
Bowl Material Polycarbonate
Bowl Guard Standard
Drain Capacity 15cm³ 20cm³ 45cm³ 130cm³

Airline Filter

Model A B C D E F G H I J K N Auto Drain B
FIL-02 40 135 27 8.4 5.4 17 G1/4” 11 40 30 30 2.3 135
FIL-03 53 165 40 8 6.5 17 G3/8” 14 53 41 41 2.3 178
FIL-04 70 168 54 10 8.5 17 G1/2” 18 70 50 50 2.3 223
FIL-05 70 168 54 10 8.5 17 G3/4” 18 70 50 50 2.3 227
FIL-06 90 248 56 13 11 23 G1” 24 90 70 70 3.2 30

Airline FIlter

Model d A D D1 L0 L1 L2
FIL-08 G1-1/2” 132 Ø90 Ø130 Ø92 32 228
FIL-09 G2” 132 Ø90 Ø130 Ø92 32 228
All dimensions in mm unless shown otherwise.





Size 1/4" to 2" BSP
Function Filter with auto drain
Body Die Cast Aluminium
Pressure Range 2 to 10 BAR
Media Air
