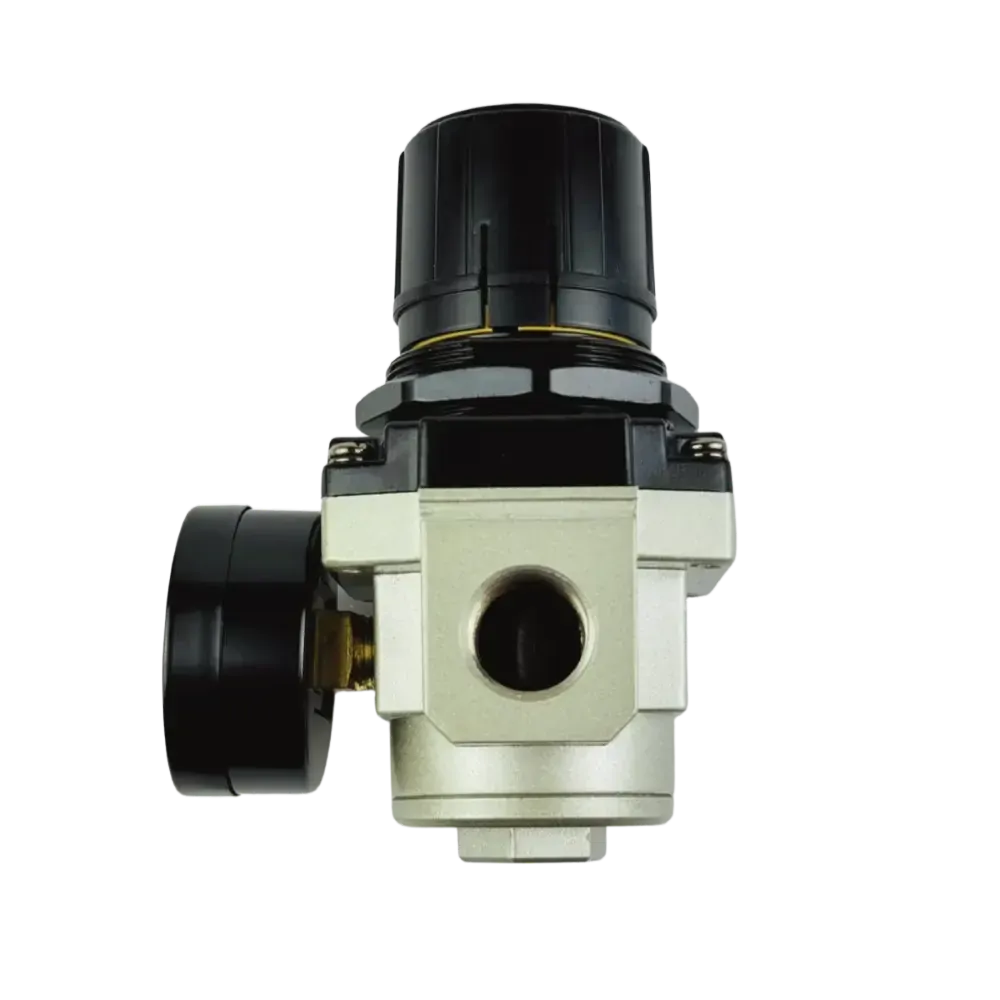

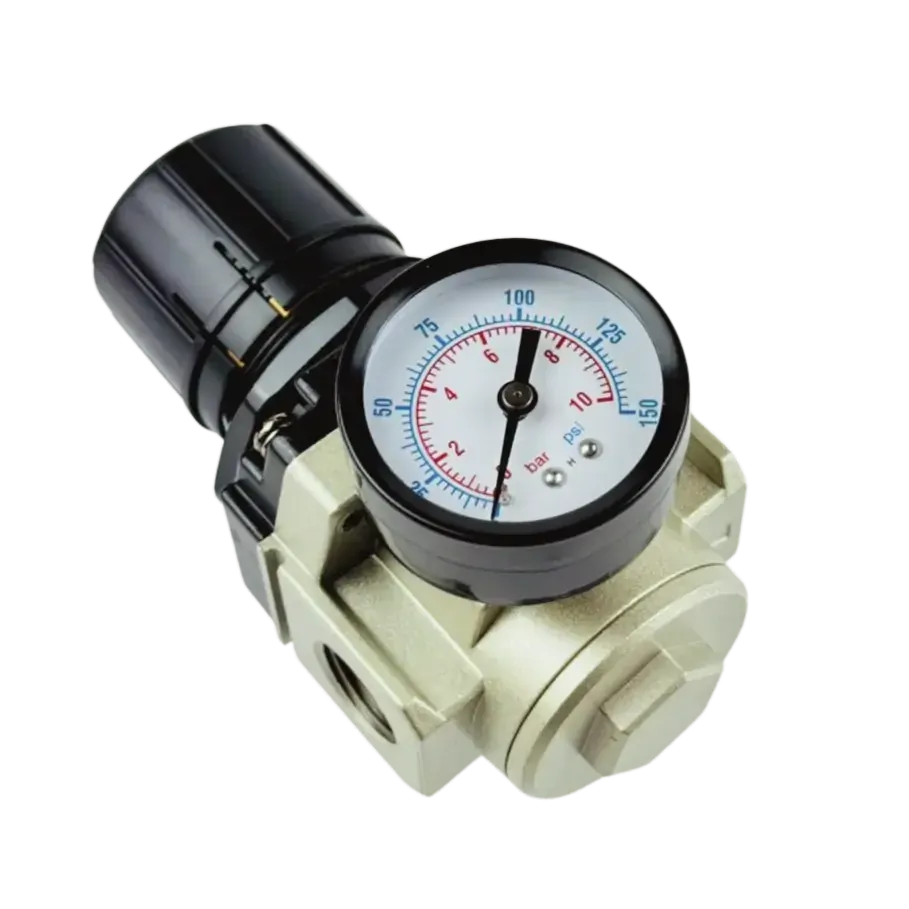

This air regulator operates in air line to regulate the downstream air pressure. If the downstream air pressure becomes to high it will relieve to atmosphere to balance the pressure back to the set point. Available from 1/4" to 2" BSP and comes with gauge & bracket. Commonly used in almost all domestic and industrial air lines as it ensures a constant pressure to air tools and systems.

Specification REG-02 REG-03 REG-04 REG-05 REG-06 REG-08 REG-09
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1” 1 ½” 2”
Flow Rate L/min 550 2500 6000 8000 8000
Pressure Range 0.5 BAR to 8.5 BAR 0.5-16 BAR
Max Inlet Pressure 10 BAR 16 BAR
Medium Temperature 0 to 60°C
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Construction Relief Type, Die Cast Aluminium
Gauge Port Size 1/8" 1/4" 1/4"

Airline Regulator

Model A A1 B C D E F G H I J K P
REG-02 40 40 82 17 9.6 43.1 5.4 1/4" 2 54 31.5 43 33.5
REG-03 53 53 116 35 1.5 41.5 6.5 3/8" 2 57 48.75 45 42.5
REG-04 70 70 131.5 37.5 2 55.5 8.5 1/2" 2 61.5 48.25 53 52.5
REG-05 75 70 135.5 37.5 2 55.5 8.5 3/4" 2 64.5 48.25 57 52.5
REG-06 90 90 152 49 2 55.5 8.5 1" 2 73 48.25 62 52.5

 Air Line Regulator

Model A B C D E F G
REG-08 260 95 108 82 120 1/4" 1-1/2"
REG-09 260 95 108 82 120 1/4" 2"
All dimensions in mm unless shown otherwise.

Size 1/4" to 2" BSP
Function Air Regulator - Relieving
Body Die Cast Aluminium
Pressure Range 0.5 to 8.5 BAR
Media Air
