Cast Steel Basket Strainer Flanged to ANSI 150 with 304 Stainless Steel Mesh (mesh size is 40 mesh or 400 micron). Allows a large flow rate with minimal pressure drop. This basket strainer is great for petrochemical or other applications where straining needs to occur with as little as possible pressure drop. Much less than the equivalent size y strainer. All cast steel basket strainers are sand blasted then coated with a heat resistant primer. Designed to ANSI B16.34 with flanges to ANSI B16.5 and tested in accordance with API 598. This unit is cast as one part and not fabricated like many other basket strainers. This costs more in production but gives the unit a much longer life and makes it a stronger pressure vessel.

Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size (BSW)
BSW-50 50 0 to 20 BAR 0 to 180°C 17.5 ½”
BSW-65 65 0 to 20 BAR 0 to 180°C 21 ½”
BSW-80 80 0 to 20 BAR 0 to 180°C 28 ½”
BSW-100 100 0 to 20 BAR 0 to 180°C 39.5 ½”
BSW-125 125 0 to 20 BAR 0 to 180°C   ¾”
BSW-150 150 0 to 20 BAR 0 to 180°C 64.5 ¾”
BSW-200 200 0 to 20 BAR 0 to 180°C 91 ¾”
BSW-250 250 0 to 20 BAR 0 to 180°C 133 ¾”
BSW-300 300 0 to 20 BAR 0 to 180°C 169 1”
BSW-400 400 0 to 20 BAR 0 to 180°C 285 1”
BSW-500 500 0 to 20 BAR 0 to 180°C 440 1”
BSW-600 600 0 to 20 BAR 0 to 180°C 560 1”

Cast Steel Basket Strainer

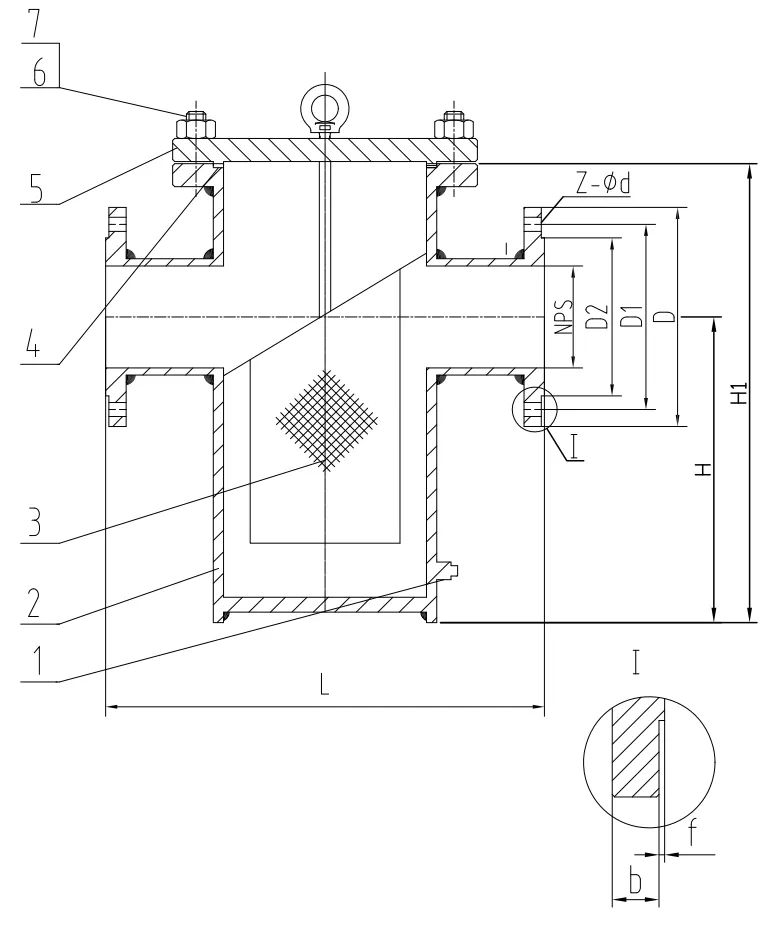

DN L H H1 D D1 D2 b f z-⌀d
50 270 175 300 150 120.7 92.1 14.3 2 4-19
65 330 210 360 180 139.7 104.8 15.9 2 4-19
80 340 255 400 190 152.4 127 17.5 2 4-19
100 430 300 470 230 190.5 157.2 22.3 2 8-19
125 480 355 550 255 215.9 185.7 22.3 2 8-22
150 500 425 630 280 241.3 215.9 23.9 2 8-22
200 560 500 780 345 298.5 269.9 27 2 8-22
250 660 500 889 405 362 323.8 28.6 2 12-26
300 750 500 785 485 431.8 381 30.2 2 12-26
350 800 550 865 535 476.3 412.8 33.4 2 12-29
400 900 630 980 595 539.8 469.9 35 2 16-29
450 950 820 1200 635 577.9 533.4 38.1 2 16-32
500 1000 850 1240 700 635 584.2 41.3 2 20-32
600 1150 900 1360 815 749.3 692.2 46.1 2 20-35

All dimensions in mm unless shown otherwise.

Cast Steel Basket Strainer

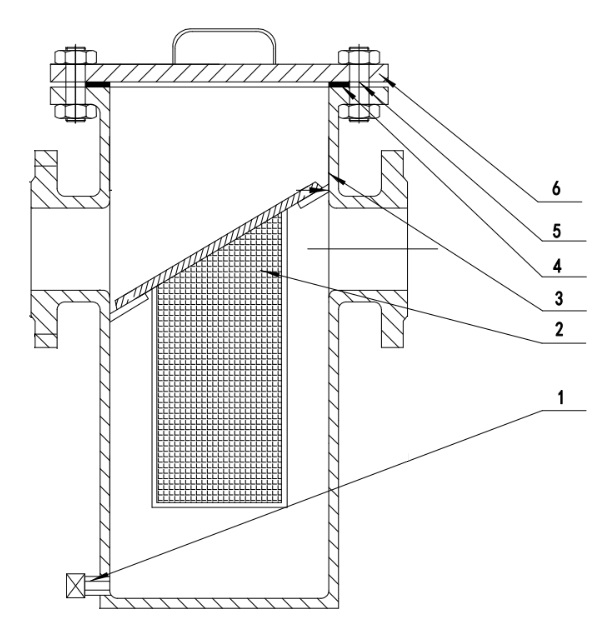

No Part Material
1 Plug Fitting ASTM A105
2 Body ASTM A105
3 Filter Screen SS304
4 Gasket Flexible Graphite / 304
5 Bonnet ASTM A105
6 Bonnet Bolt Nut ASTM A194 Gr.2H
7 Bonnet Bolt ASTM A193 Gr.B7

Size 50mm to 600mm
Body Cast Steel
Mesh 304 Stainless Steel
Pressure Range 0 to 20 BAR
Flanged ANSI 150
Factory Accredited CE, ISO 9001
