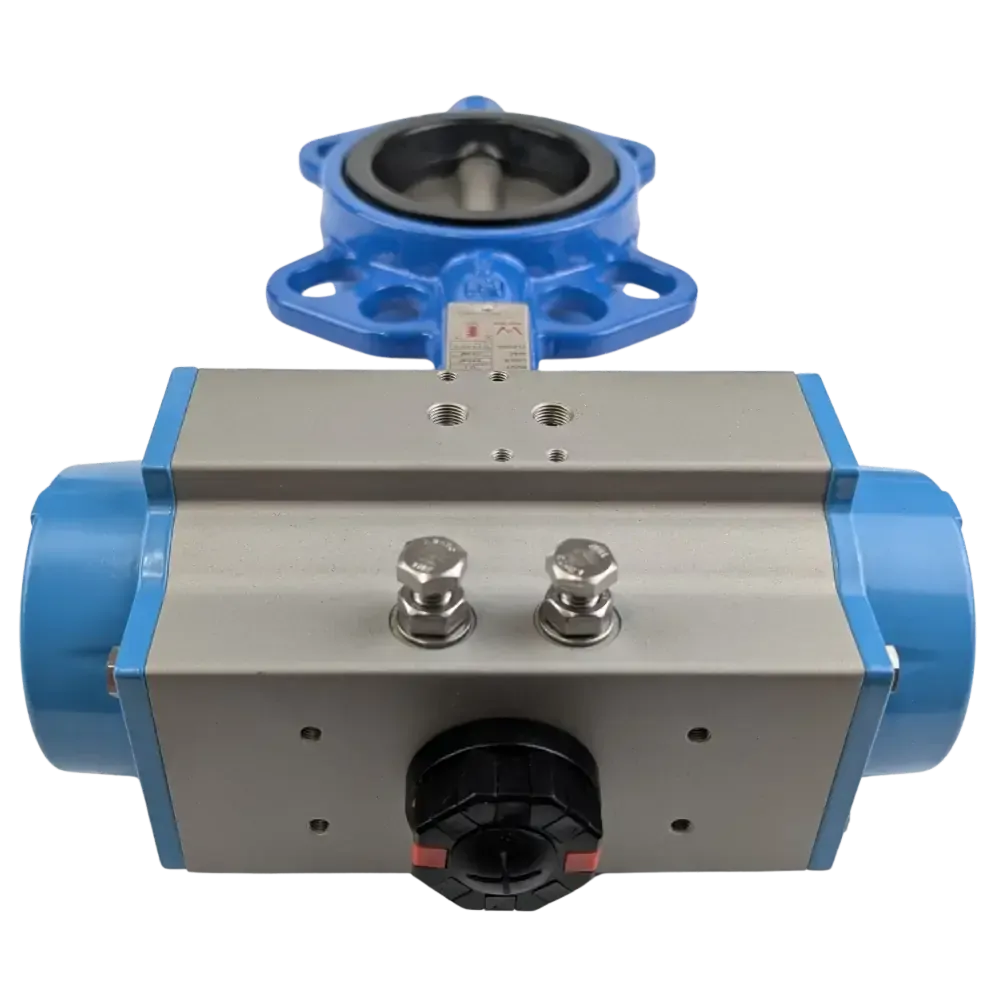

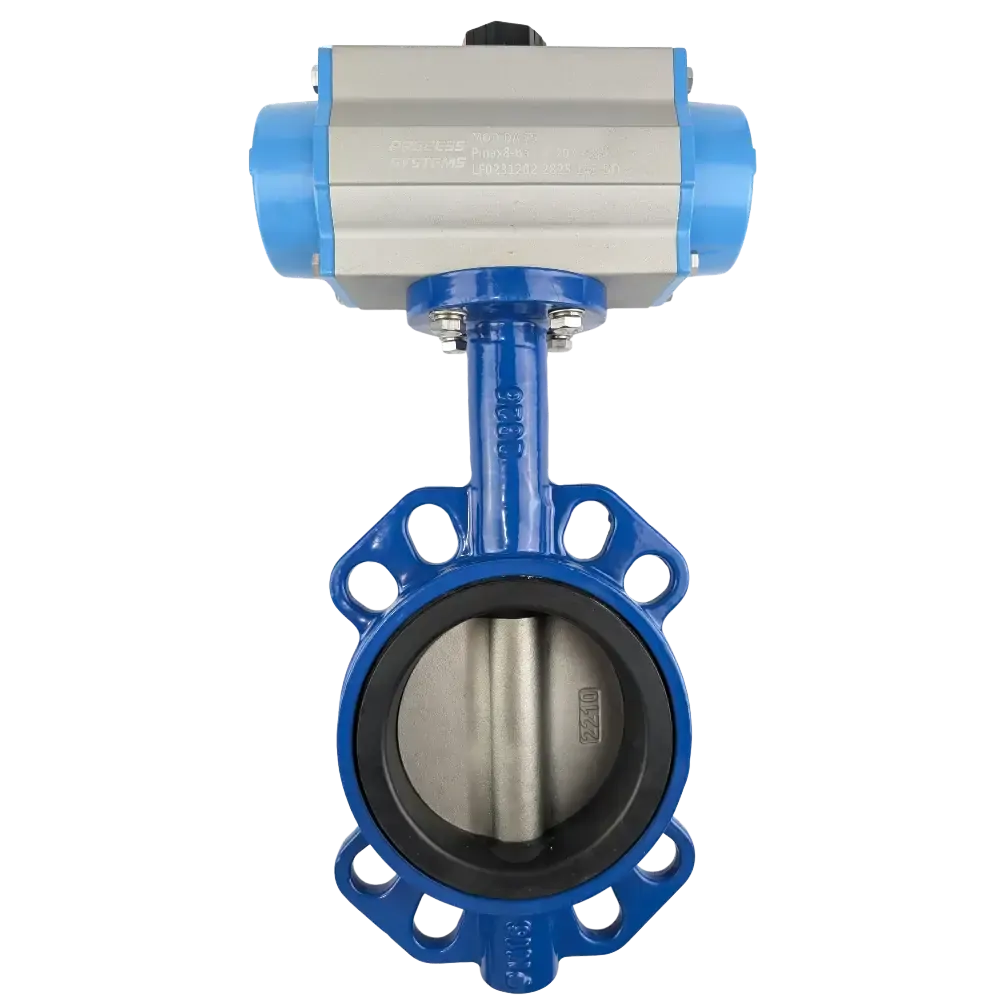

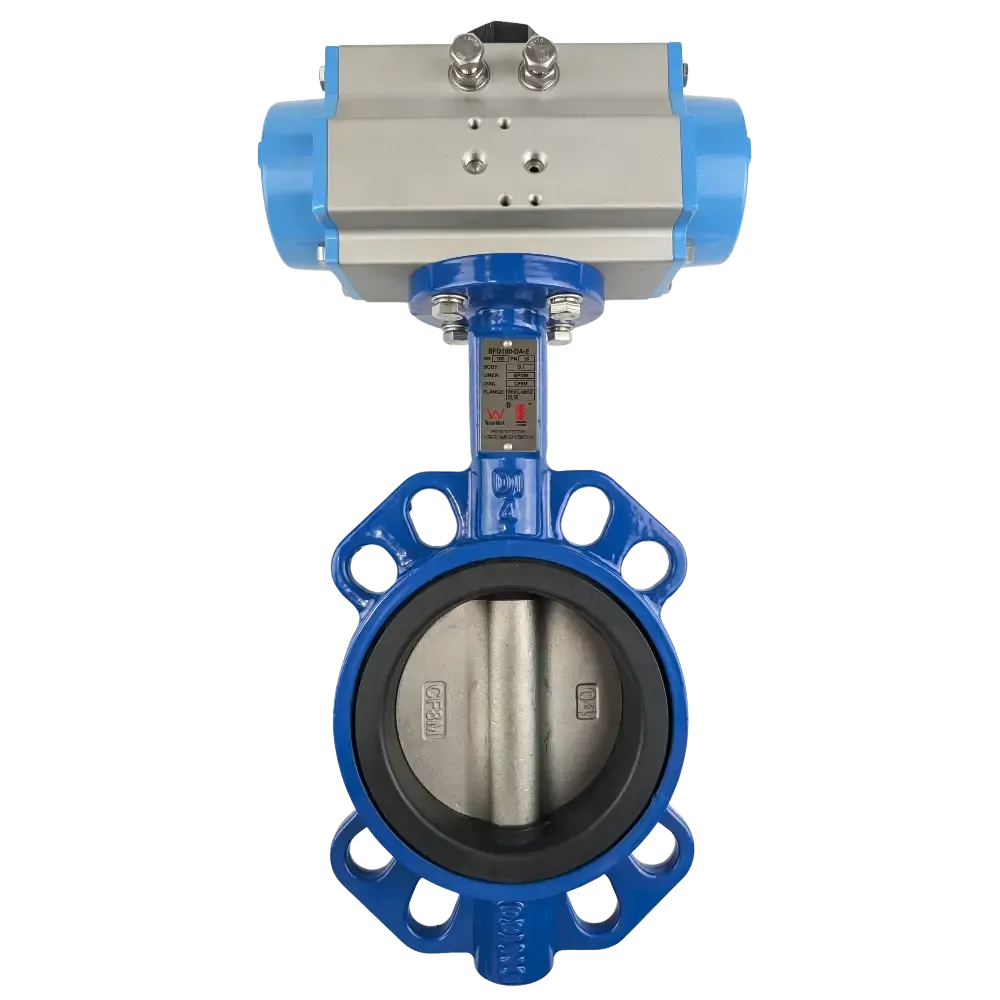

The BFD (supercedes the BFK) series has a ductile iron body, 316 S.S disc, EPDM seat and a double acting pneumatic actuator making it suited to a wide range of industrial applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality double acting (rack and pionion design) anodised aluminium pneumatic actuator. The unique bonded catridge design of the butterfly valve gives it a longer life span, allows vacuum to be run through it and enables the seat to be replaceable if ever the need should arise. Designed & manufactured in accordance with API609, inspected and tested in accordance with API598. Common applications include water trucks, irrigation, irrigation and other industrial applications. If sizes above 600mm or extension shafts are required please contact us.

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure Actuator Port Size
BFD50-DA-E 50 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD65-DA-E 65 DA50 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD80-DA-E 80 DA63 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD100-DA-E 100 DA75 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD125-DA-E 125 DA88 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/8"
BFD150-DA-E 150 DA100 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD200-DA-E 200 DA115 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD250-DA-E 250 DA125 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD300-DA-E 300 DA145 Vacuum to 16 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD350-DA-E 350 DA180 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD400-DA-E 400 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD450-DA-E 450 DA200 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD500-DA-E 500 DA240 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"
BFD600-DA-E 600 DA270 Vacuum to 10 BAR -20°C to 90°C (40°C Potable) 6 to 8 BAR 1/4"

For sizes over 600mm or different seat material please contact us.

Model DN Actuator C C1 H1 H2 J K L M AS2129 Table D AS2129 Table E ANSI150
ØD1 n-Ød1 ØD1 n-Ød1 ØD1 n-Ød1
BFD50-DA-E 50 DA50 42 46.1 225 70 138 71 70 20 114 4-18 114 4-18 120.5 4-19
BFD65-DA-E 65 DA50 44.7 49.1 245 77 138 71 70 20 127 4-18 127 4-18 139.5 4-19
BFD80-DA-E 80 DA63 45.2 48.4 261 87 162 80.5 80 20 146 4-18 146 4-18 152.5 4-19
BFD100-DA-E 100 DA75 52.1 55.3 305 112 208 94.5 97 20 178 4-18 178 4(8)-18 190.5 4(8)-19
BFD125-DA-E 125 DA88 54.4 58.8 332 128 245 109 116 20 210 4(8)-18 210 4(8)-18 216 4(8)-22
BFD150-DA-E 150 DA88 55.8 59.1 361 143 266 123 122 20 235 4(8)-18 235 4(8)-22 241.5 4(8)-22
BFD200-DA-E 200 DA115 60.6 64.1 423 173 310 137 142 30 292 4(8)-18 292 4(8)-22 298.5 4(8)-22
BFD250-DA-E 250 DA125 65.6 71.8 499 210 340 148 154 30 356 4(8)-22 356 4(12)-22 362 4(12)-25
BFD300-DA-E 300 DA145 76.9 81 578 244 401 168.5 179 30 406 4(12)-22 406 4(12)-26 432 4(12)-25
BFD350-DA-E 350 DA180 76.5 79.5 635 267 482 204 222 30 470 4(12)-26 470 4(12)-26 476 4(12)-29
BFD400-DA-E 400 DA200 86.5 90 697 297 532 224 244 30 521 4(12)-26 521 4(12)-26 539.5 4(16)-29
BFD450-DA-E 450 DA200 105.6 109 737 315 532 224 244 30 584 4(12)-26 584 4(12)-26 578 4(16)-32
BFD500-DA-E 500 DA240 131.8 135 840 360 662 266 288 30 641 4(16)-26 641 4(16)-26 635 4(20)-32
BFD600-DA-E 600 DA270 152 156 1006 444 730 306 323 30 756 4(16)-30 756 4(16)-33 749.5 4(20)-35

All dimensions in mm unless specified otherwise

Item Description Material
1 Body Ductile Iron (Fusion Bonded Epoxy Coated)
2 Seat EPDM
3 Shaft SS431
4 Disc CF8M
5 Bushing PTFE
6 O Ring NBR
  Pneumatic Actuator Anodized Aluminium

Size 50mm to 600mm
Body FBE Coated Ductile Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Double Acting Pneumatic
