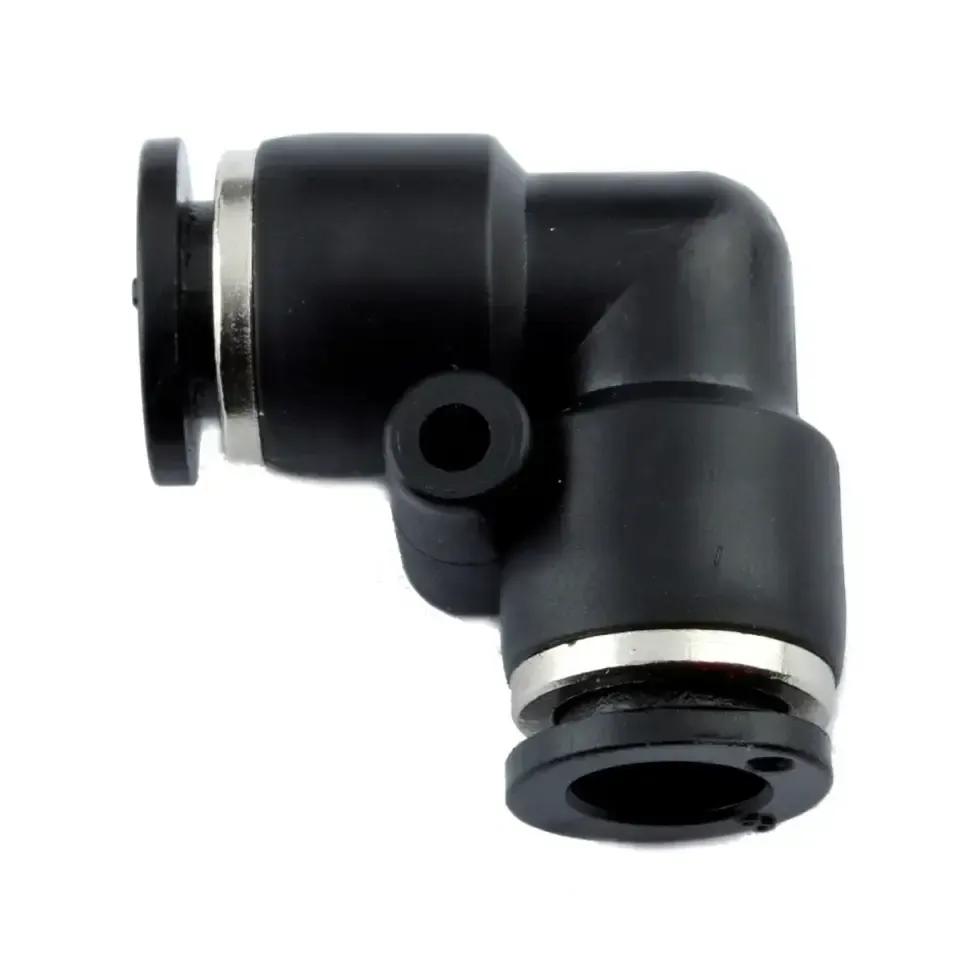

Elbow connector.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C

Push Fit Elbow Fitting

Model O.D Tube (øD) mm E øP F ød
YPE04 4 16.8 10.5 - -
YPE06 6 19 13 8 3.2
YPE08 8 23 14.4 9 3.2
YPE10 10 27.5 18.4 12 4.2
YPE12 12 30 20 13.2 4.2

All dimensions in mm unless shown otherwise.

Tube Size 4mm to 16mm
Function Elbow Union Push Fit
