Electric Actuator
SKU: 0M

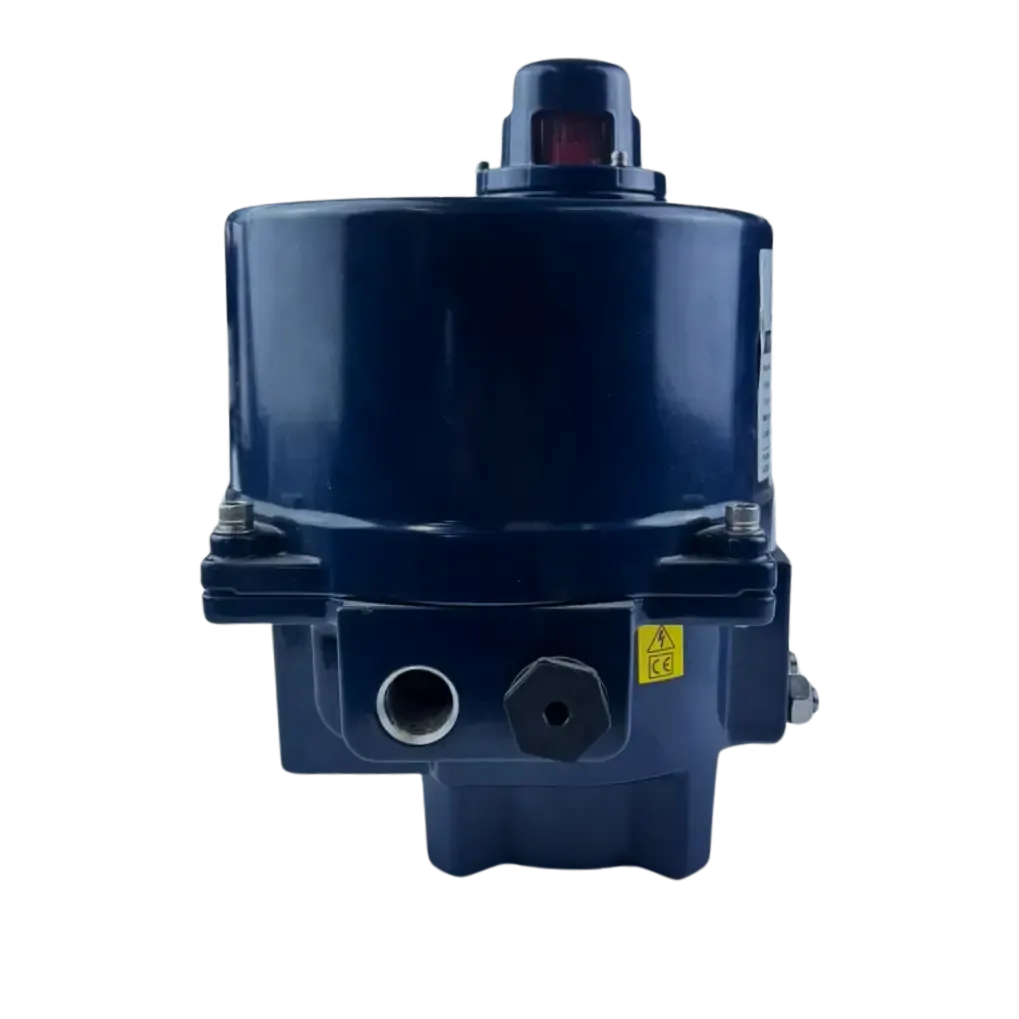

The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). Cable connection is made through 2 of M20x1.5 cable entries. All models have visual indicator, extra limit switches and a manual override. Duty cycle is dependant on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.
| Model | Torque (Nm) | Time (seconds) | (AMP) 12v DC | (AMP) 24v AC/DC | (AMP) 110v AC | (AMP) 240v AC | (AMP) 415v AC | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC | DC | Run | Start | Duty | Run | Start | Duty | Run | Start | Duty | Run | Start | Duty | Run | Start | Duty | ||
| OM-1 | 35 | 13 | 15 | 1.9 | 2 | 75% | 1.1 | 1.1 | 75% | 0.6 | 0.6 | 30%* | 0.3 | 0.4 | 30%* | - | - | - |
| OM-A | 50 | 24 | 20 | 1.3 | 1.5 | 75% | 0.8 | 0.9 | 75% | 0.6 | 0.6 | 30%* | 0.3 | 0.4 | 30%* | - | - | - |
| OM-2 | 90 | 17 | 15 | 3.4 | 5.2 | 75% | 2.2 | 4.5 | 75% | 1 | 1.8 | 30%* | 0.5 | 0.8 | 30%* | 0.4 | 0.9 | 30% |
| OM-3 | 150 | 26 | 22 | 4.4 | 4.9 | 75% | 2.4 | 5 | 75% | 1.2 | 1.8 | 30%* | 1 | 1.2 | 30%* | 0.4 | 0.9 | 30% |
| OM-4 | 400 | 18 | 16 | 16.1 | 16.1 | 75% | 8.5 | 9.2 | 75% | 1.9 | 3.8 | 30%* | 1.1 | 2 | 30%* | 0.6 | 1.4 | 30% |
| OM-5 | 500 | 25 | 22 | 14.1 | 13.5 | 75% | 7.5 | 9 | 75% | 2 | 3.8 | 30%* | 1.1 | 2 | 30%* | 0.6 | 1.4 | 30% |
| OM-6 | 650 | 31 | 28 | 12.3 | 12.5 | 75% | 7 | 8.5 | 75% | 2.1 | 3.8 | 30%* | 1.1 | 2 | 30%* | 0.6 | 1.4 | 30% |
| OM-7 | 1000 | 55 | 46 | - | - | 75% | 6.8 | 7.8 | 75% | 3.1 | 8.5 | 30%* | 1.4 | 4.1 | 30%* | 0.5 | 1.3 | 30% |
| OM-8 | 1500 | 55 | 46 | 25 | 26 | 75% | 8.1 | 8 | 75% | 3.3 | 9 | 30%* | 1.6 | 4.4 | 30%* | 0.6 | 1.2 | 30% |
| OM-9 | 2000 | 70 | 58 | - | - | 50% | 8.8 | 11 | 50% | 3.3 | 5.8 | 30%* | 2.1 | 3.8 | 30%* | 0.7 | 2 | 30% |
| OM-10 | 2500 | 70 | 58 | 28 | 60 | 50% | 11.8 | 11 | 50% | 4 | 6.5 | 30%* | 2.3 | 4 | 30%* | 0.7 | 2 | 30% |
| OM-11 | 3000 | 70 | 58 | - | - | 50% | 15.1 | 11 | 50% | 4.5 | 6.5 | 30%* | 2.5 | 4.2 | 30%* | 0.7 | 2 | 30% |
| OM-12 | 3500 | 70 | 58 | - | - | 50% | 17.8 | 12 | 50% | 4 | 8 | 30%* | 2.4 | 4.4 | 30%* | 0.8 | 2.6 | 30% |
| OM-13 | 4500 | 50% | 50% | 4.2 | 8 | 30%* | 2.4 | 4.8 | 30%* | 0.8 | 2.6 | 30% | ||||||
*50% & 75% Duty Cycle available as an option depending on Actuator model, contact Sales for more information.
Optional Extras:
- Potentiometer
- Torque Limiter
- Localised Control
- Heater
- Modulating
- Also available in Spring Return
0M-A & 0M-1 0M-2 & Above
| Model | A (mm) | B (mm) | C (mm) | ISO 5211 Mounting | Female Drive | End Stops | Manual Override |
|---|---|---|---|---|---|---|---|
| OM-1 | 108 | 155 | - | FO3 / FO5 | 14mm Star | NO | Spanner Drive |
| OM-A | 130 | 200 | - | F05/FO7 | 17mm Star | NO | Allen Key Drive |
| OM-2 | 200 | 290 | 330 | FO7/F10 | 22mm Star | Yes | Hand wheel |
| OM-3 | 200 | 290 | 330 | FO7/F10 | 22mm Star | Yes | Hand wheel |
| OM-4 | 234 | 315 | 380 | F10/F12 | 36mm Star | Yes | Hand wheel |
| OM-5 | 234 | 315 | 380 | F10/F12 | 36mm Star | Yes | Hand wheel |
| OM-6 | 234 | 315 | 380 | F10/F12 | 36mm Star | Yes | Hand wheel |
| OM-7 | 234 | 420 | 520 | F14 | 36mm Star | Yes | Hand wheel |
| OM-8 | 234 | 420 | 520 | F14 | 36mm Star | Yes | Hand wheel |
| OM-9 | 260 | 590 | 540 | F16 | O 75mm Keyway | Yes | Hand wheel |
| OM-10 | 260 | 590 | 540 | F16 | O 75mm Keyway | Yes | Hand wheel |
| OM-11 | 260 | 590 | 540 | F16 | O 75mm Keyway | Yes | Hand wheel |
| OM-12 | 260 | 590 | 540 | F16 | O 75mm Keyway | Yes | Hand wheel |
| OM-13 | F16/F25 | O 75mm Keyway | Yes | Hand wheel |
Torque 35 to 3500 NM
Function Drive Open/Drive Close, 90 degree turn
Body Powder Coated Die Cast Aluminium
Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
Rating IP67
