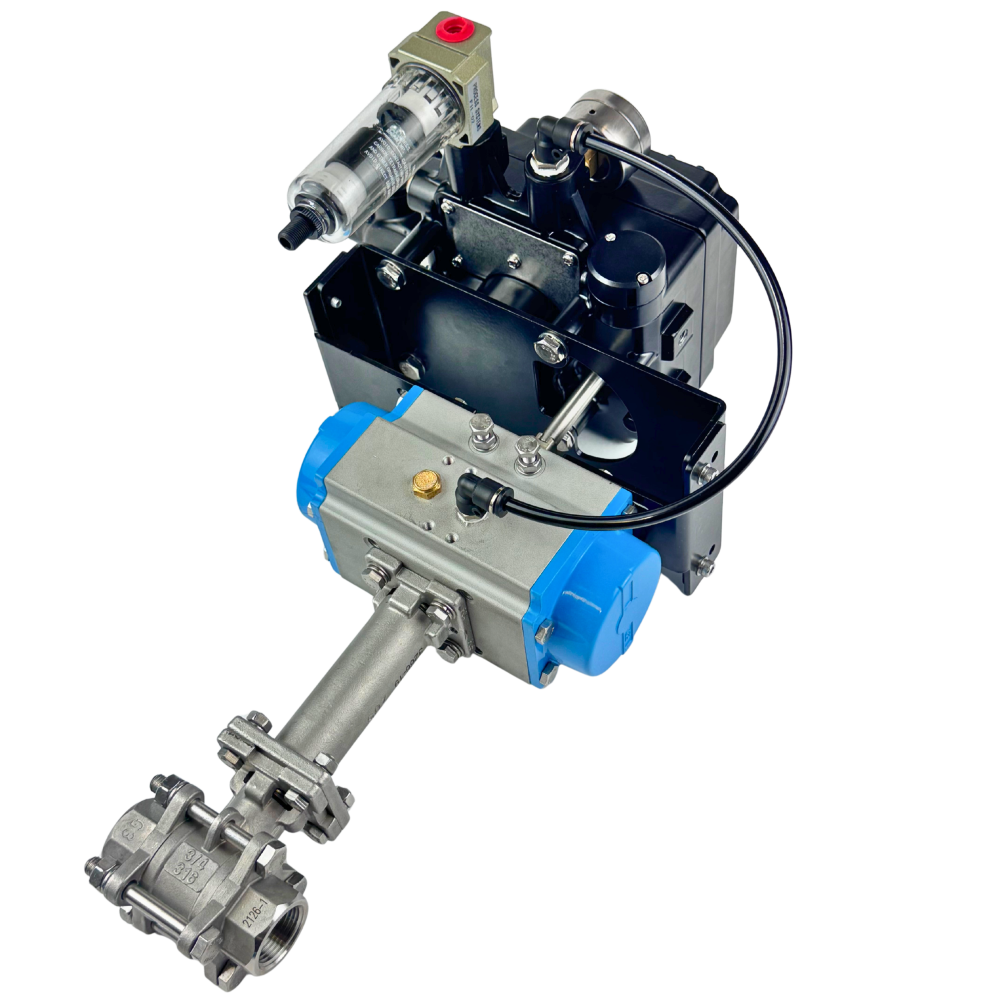

Aluminium die cast body electro pneumatic positioner. Allows accurate modulation of rotary pneumatic actuators. Namur interface and suits up to 180ccm volume actuator with a supply pressure of 1.5 to 7 BAR. Can be used on Spring Return Actuators if one port is plugged into the positioner.

Input Signal 4 to 20mA
Impedance 250 +/- 15 Ω
Supply Pressure 1.4 to 7kgf/cm² (20~100psi) (Clean Dry Air Recommended)
Air Connection G1/4”
Gauge Connection G1/8”
Conduit G1/2”
Weather Protection IP66
Ambient Temperature -20°C to 70°C
Linearity
Hysteresis 1.50%
Sensitivity 0.40%
Air Consumption 3 LPM @1.5 BAR
Flow Capactiy 8 LPM
Material Die Cast Aluminium
Weight 2.8kg

Electro Pneumatic Analogue Smart Positioner

Input Signal 4 to 20mA
Output Signal 4 to 20mA
Body Aluminium
IP Rating IP66
