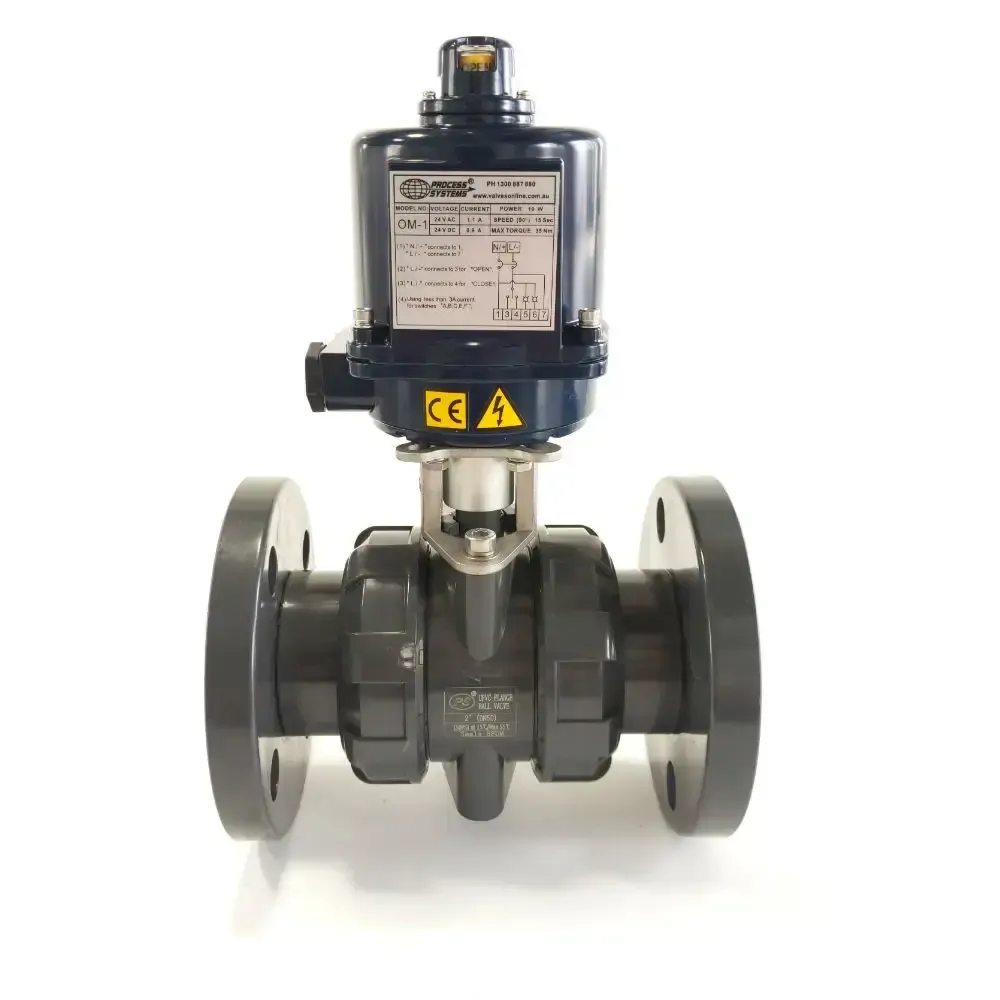

2 way UV stabilised ANSI 150 Flanged PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches. Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Model Size DN(mm) Actuator Media Pressure Media Temperature
BLP4F-E*-E 1/2 15 0M-1 Vacuum to 10 Bar Ambient
BLP5F-E*-E 3/4 20 0M-1 Vacuum to 10 Bar Ambient
BLP6F-E*-E 1 25 0M-1 Vacuum to 10 Bar Ambient
BLP7F-E*-E 1 ¼ 32 0M-1 Vacuum to 10 Bar Ambient
BLP8F-E*-E 1 ½ 40 0M-1 Vacuum to 10 Bar Ambient
BLP9F-E*-E 2 50 0M-1 Vacuum to 10 Bar Ambient
BLP10F-E*-E 2 ½ 65 0M-A Vacuum to 10 Bar Ambient
BLP11F-E*-E 3 80 0M-A Vacuum to 10 Bar Ambient
BLP12F-E*-E 4 100 0M-A Vacuum to 10 Bar Ambient

*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For FKM change the 'E' to 'V'.

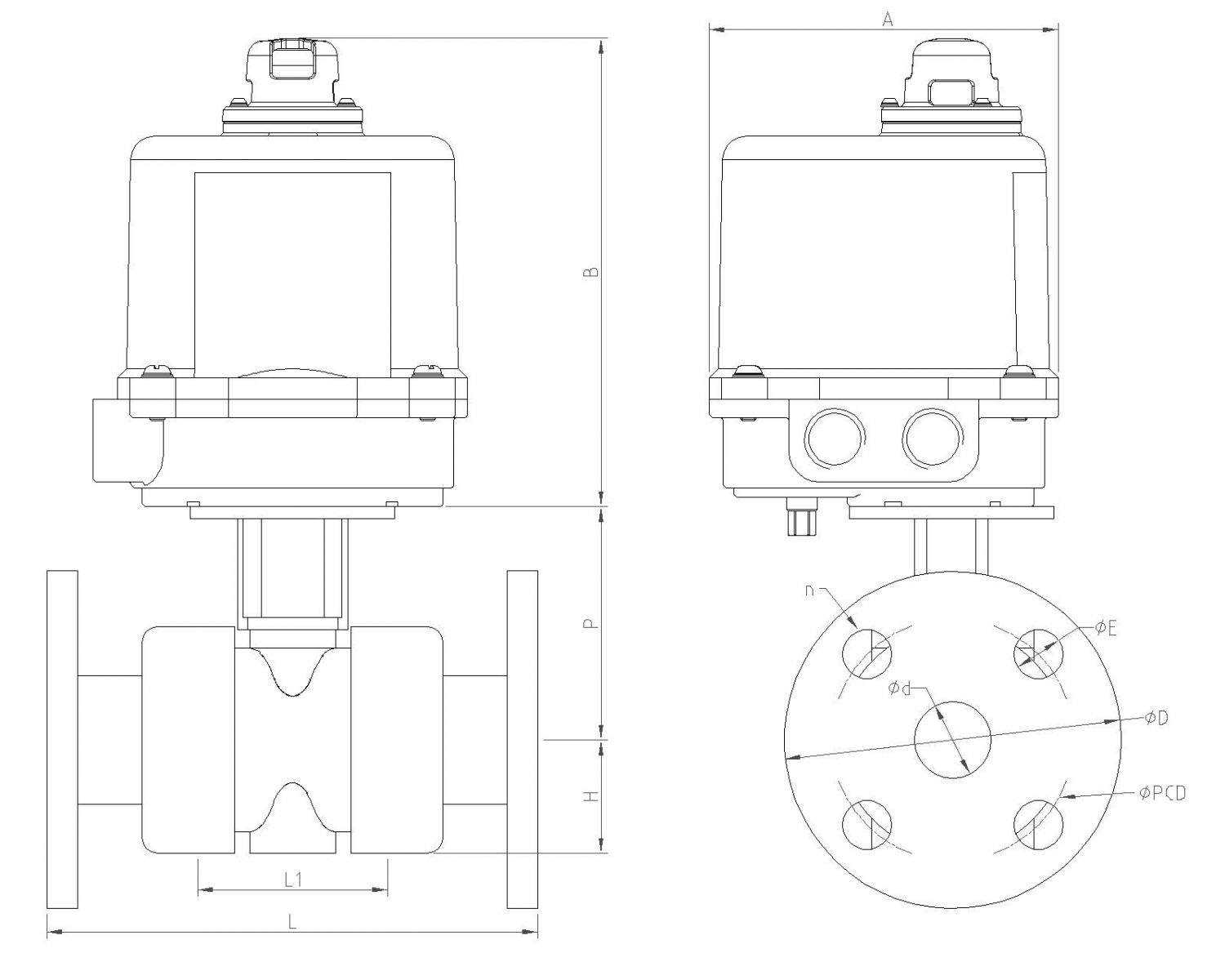

Model Size Actuator ⌀d ⌀PCD ⌀D L L1 H2 n ⌀E P A B
BLP4F-E*-E 1/2 0M-1 15 60.5 95 134 52 27.5 4 15 61.5 108 155
BLP5F-E*-E 3/4 0M-1 20 70 105 144 54 32 4 15 72.5 108 155
BLP6F-E*-E 1 0M-1 25 79.5 125 160 62 37.25 4 19 77.5 108 155
BLP7F-E*-E 1-1/4 0M-1 32 89 140 178 70 42.75 4 19 84.5 108 155
BLP8F-E*-E 1-1/2 0M-1 40 98.5 150 195 79.5 50 4 19 92 108 155
BLP9F-E*-E 2 0M-1 50 120.7 165 215 85 60 4 19 107 108 155
BLP10F-E*-E 2-1/2 0M-A 63 139.7 182 320 133 76.5 4 19 122 130 200
BLP11F-E*-E 3 0M-A 75 152 200 350 146 86 8 19 132 130 200
BLP12F-E*-E 4 0M-A 90 190.5 228 395 160 107 8 19 180 130 200

All dimensions are in mm unless otherwise specified

Size 25mm to 100mm ANSI 150 Flanged
Body UV stabalised PVC
Seat PTFE
Pressure 10 BAR
Temperature Ambient
Actuation Electric
