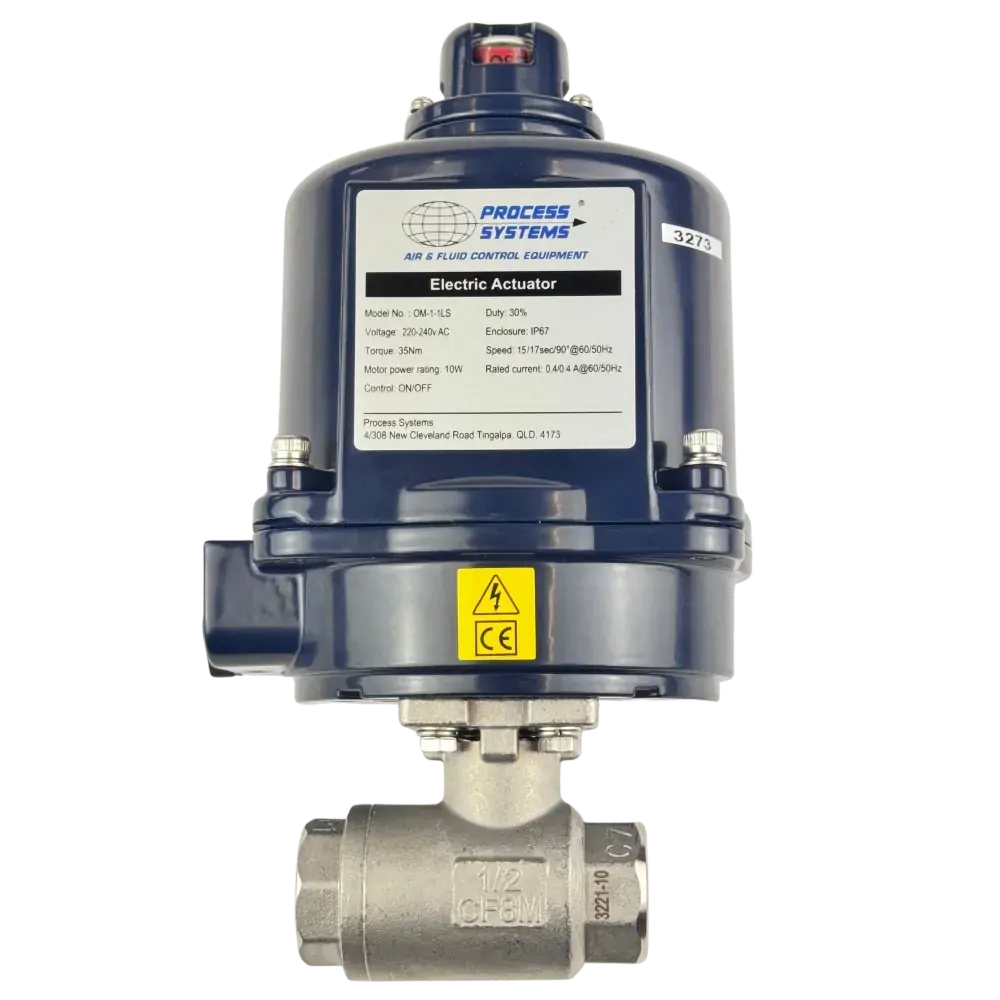

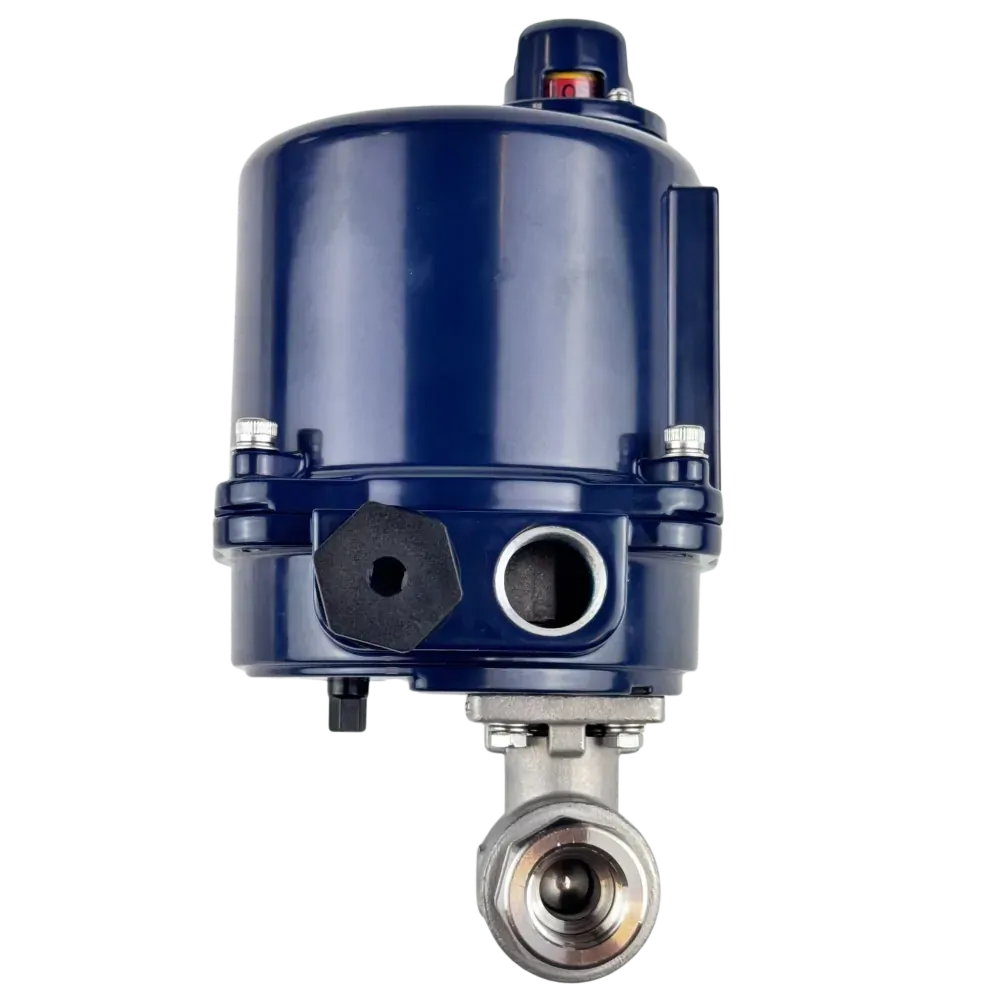

Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with an IP67 electric actuator with visual indicator and extra limit switches. Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature
BLSHP2B-E*-D 1/4 8 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP3B-E*-D 3/8 10 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP4B-E*-D 1/2 12 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP5B-E*-D 3/4 17 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP6B-E*-D 1 22 0M-1 0 to 200 BAR 40°C @ 200 BAR
BLSHP8B-E*-D 1 ½ 35 0M-2 0 to 200 BAR 40°C @ 200 BAR
BLSHP9B-E*-D 2 35 0M-2 0 to 200 BAR 40°C @ 200 BAR

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC, 415vAC.

Electric High Pressure Ball Valve



Model DN Actuator B C D E F G
BLSHP2B-E*-D 8 0M-1 75   41 0 108 155
BLSHP3B-E*-D 10 0M-1 75   41 0 108 155
BLSHP4B-E*-D 15 0M-1 75   41 0 108 155
BLSHP5B-E*-D 20 0M-1 81   43.8 0 108 155
BLSHP6B-E*-D 25 0M-1 91   53.5 0 108 155
BLSHP8B-E*-D 40 0M-2 121   75.2 0 200 290
BLSHP9B-E*-D 50 0M-2 145   75.2 0 200 290

All dimensions in mm unless otherwise shown.

Electric High Pressure Ball Valve

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure  200 BAR
Temperature Ambient
Actuation Electric
