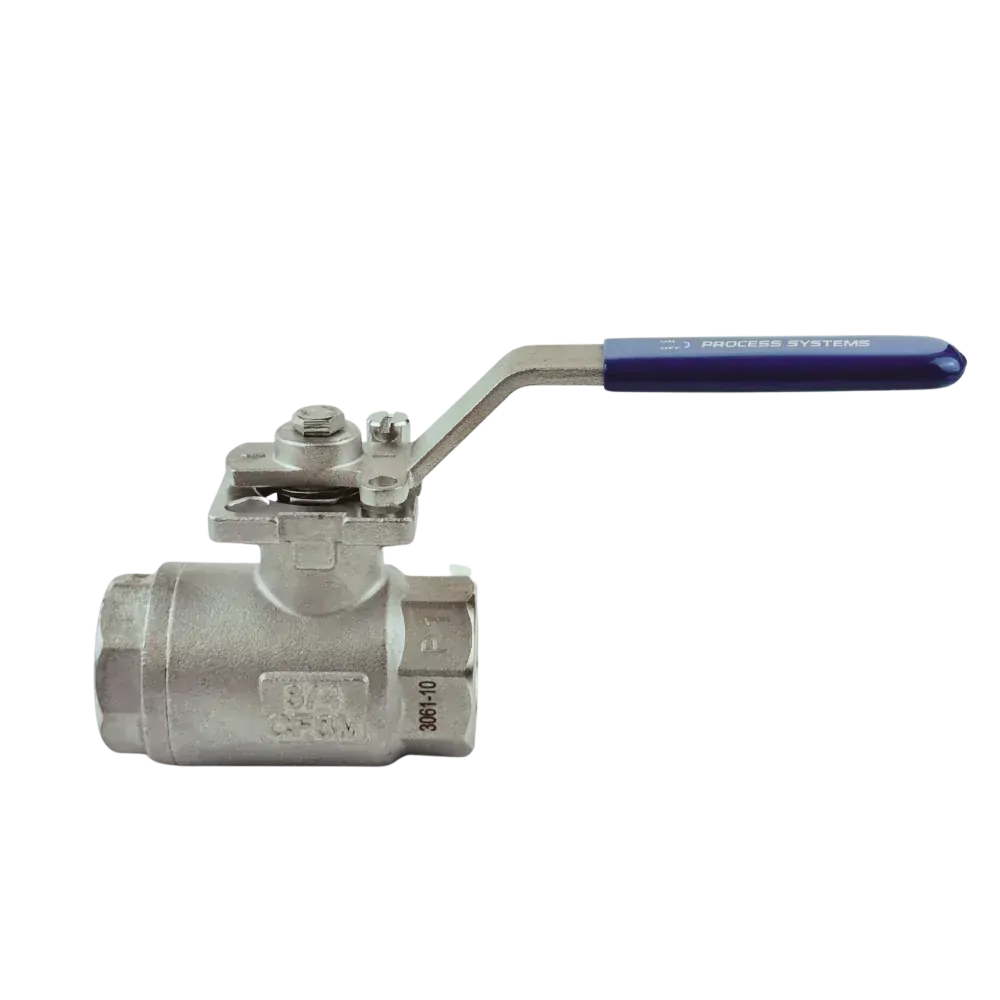

Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with lockable lever operation. Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying. Threads conform to ISO 7.1 Sealing Threads.

Model Size(BSP) Orifice Size (mm) CV Media Pressure Media Temperature Torque (NM)
BLSHP2B-L-D 1/4 8 5.3 0 to 200 BAR 40°C 9
BLSHP3B-L-D 3/8 10 8 0 to 200 BAR 40°C 9
BLSHP4B-L-D 1/2 12 19 0 to 200 BAR 40°C 12
BLSHP5B-L-D 3/4 17 35 0 to 200 BAR 40°C 14
BLSHP6B-L-D 1 22 50 0 to 200 BAR 40°C 19
BLSHP8B-L-D 1 ½ 35 180 0 to 200 BAR 40°C 41
BLSHP9B-L-D 2 35 210 0 to 200 BAR 40°C 41

Size ⌀ID A B C □E ⬡F G h H L
1/4" 9.6 F03 F04 126 9 25.9 41 8 72 75
3/8" 9.6 F03 F04 126 9 25.9 41 8 72 75
1/2" 12.7 F03 F04 126 9 32.6 41 8 72 75
3/4" 17.5 F03 F04 126 9 38.4 43.8 8 75 81
1" 22.1 F04 F05 156 11 47.2 53.5 10 87 91
1-1/2" 34.7 F05 F07 181 14 66.2 75.2 13 114 121
2" 34.7 F05 F07 181 14 82 75.2 13 114 145

All dimensions in mm unless specified



Item Part Name Material Qty
1 Body CF8M 1
2 End Cap CF8M 1
3 Ball CF8M 1
4 Anti Static Stem SS316 1
5 Ball Seat Delrin 2
6 Body Seal PTFE 1
7 Thrust Washer PTFE 1
8 Stem Packing PTFE 1
8A O-ring Viton 1
9 Thrust Washer 50%SS 50%PTFE 1
10 Stem Nut SS304 1
11 Lock SAddle SS304 1
12 Handle SS304 1
13 Stop Bolt SS304 1
14 Stop Nut SS304 1
15 Stop Washer SS304 1
16 Handle Bolt SS304 1
17 Handle Sleeve Vinyl 1

Size 1/4" to 2" BSP
Body 316 Stainless Steel
Seat Delrin
Pressure  200 BAR
Temperature Ambient
Actuation Lockable Lever
