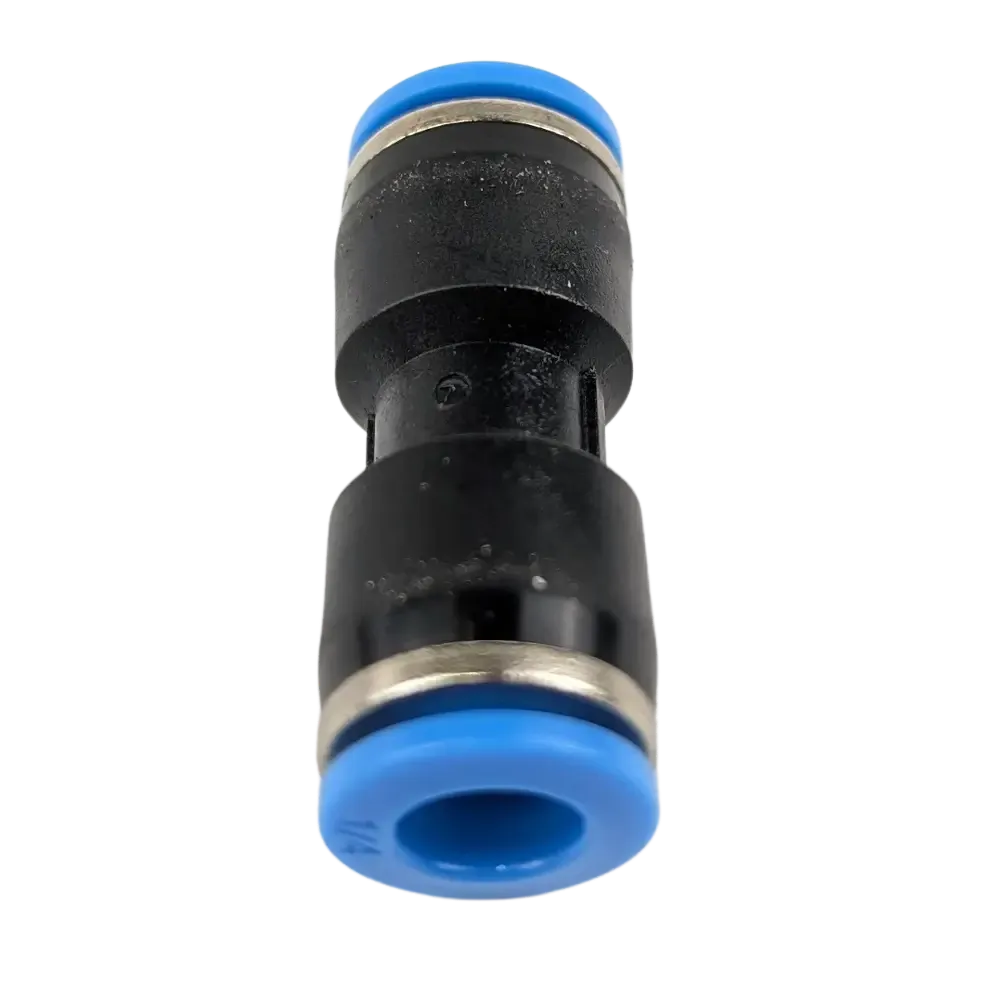

Straight push fit joiner.

Material Nickel Plated Brass / UV Black Plastic, Nitrile O-ring
Pressure Range 0 to 8 BAR
Max Temperature 60°C

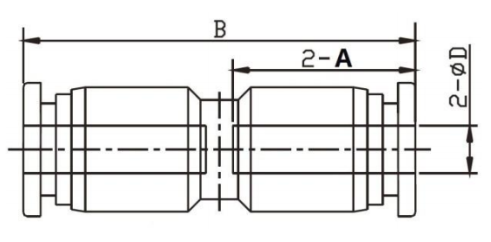

Imperial Push Fit Joiner

Model Tube A B
IPU1/4 1/4" 15.9 34.6
IPU5/16 5/16" 18.1 38.5
IPU3/8 3/8" 20.7 46.4
IPU1/2 1/2" 22.1 47.6

All dimensions in mm unless shown otherwise.

This threaded elbow is only representative of the construction.

Push Fit Fitting Construction

Tube Size 1/4" to 1/2"
Function Straight Joiner Push Fit
