Lugged Ductile Iron Double Acting Butterfly Valve
SKU: BFLDA

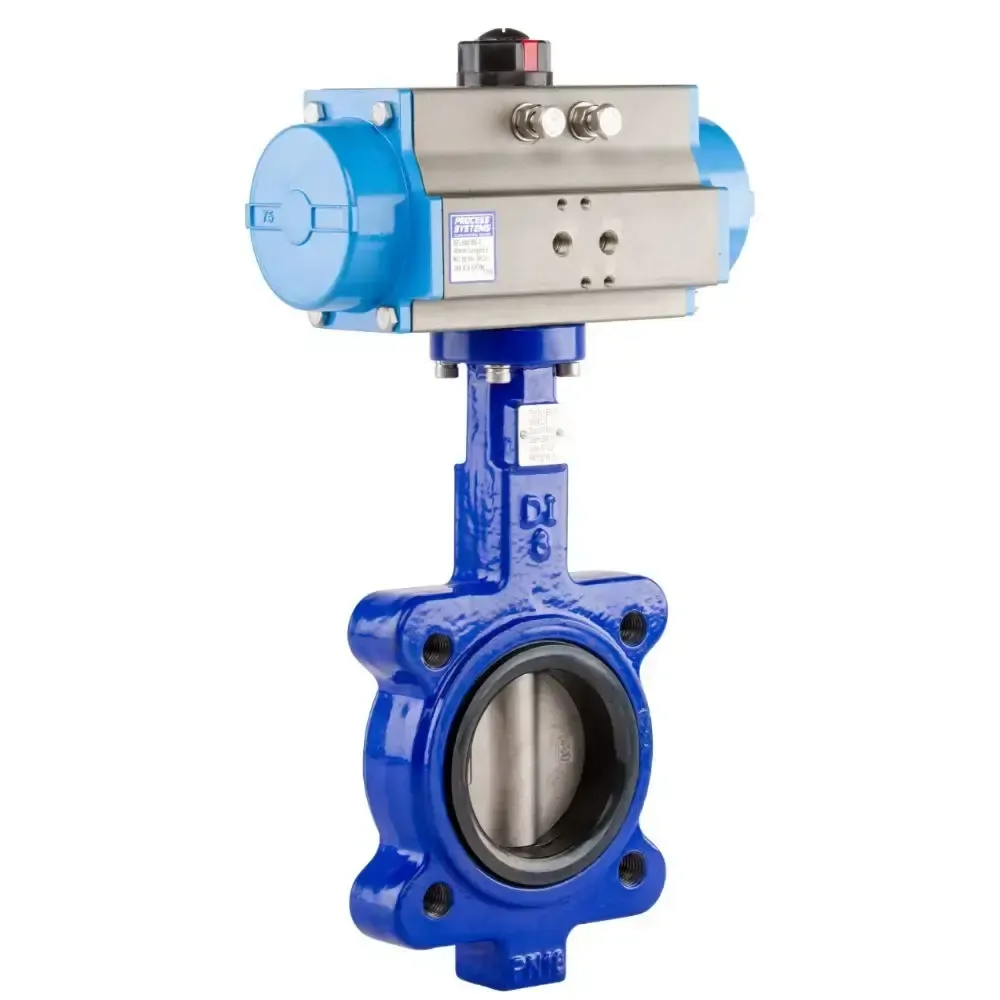

The BFL series of lugged butterfly valves (table E & table D/AS4087 PN16 standard) have a cast iron body, 316 S.S disc and an EPDM seat making them suited to a wide range of general water and industrial applications. They are operated by either a high quality anodised aluminium double acting (rack and pinion design) pneumatic actuator. The unique bonded catridge design of the valve gives it a longer life span, allows vacuum to be run through it and makes it replaceable if ever the need should arise. Common applications include water trucks, irrigation, cement hoppers and other industrial applications. If sdifferent flange standards or different seat materials are required please contact us.
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure | Actuator Port Size |
|---|---|---|---|---|---|---|
| BFL50-DA-E | 50 | DA50 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/8" |
| BFL65-DA-E | 65 | DA50 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/8" |
| BFL80-DA-E | 80 | DA63 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/8" |
| BFL100-DA-E | 100 | DA75 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/8" |
| BFL125-DA-E | 125 | DA88 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/8" |
| BFL150-DA-E | 150 | DA100 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL200-DA-E | 200 | DA115 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL250-DA-E | 250 | DA125 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL300-DA-E | 300 | DA145 | Vacuum to 16 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL350-DA-E | 350 | DA180 | Vacuum to 10 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL400-DA-E | 400 | DA200 | Vacuum to 10 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL450-DA-E | 450 | DA200 | Vacuum to 10 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL500-DA-E | 500 | DA240 | Vacuum to 10 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
| BFL600-DA-E | 600 | DA270 | Vacuum to 10 BAR | -20°C to 90°C (40°C Potable) | 6 to 8 BAR | 1/4" |
Contact us for sizes above 300mm.
| DN | Actuator | A | B | F | H1 | H2 | H3 | L | P |
|---|---|---|---|---|---|---|---|---|---|
| 50 | DA50 | 138 | 70 | 71 | 71.3 | 125 | 90 | 43 | 1/8" |
| 65 | DA50 | 138 | 70 | 71 | 77.5 | 140 | 90 | 46 | 1/8" |
| 80 | DA63 | 162 | 81 | 80.4 | 89.2 | 145 | 101 | 46 | 1/8" |
| 100 | DA75 | 208 | 97 | 94.5 | 101.5 | 165 | 117 | 52 | 1/8" |
| 125 | DA75 | 208 | 97 | 94.5 | 117.5 | 178 | 117 | 56 | 1/8" |
| 150 | DA88 | 245 | 116 | 109 | 145 | 185 | 136 | 56 | 1/8" |
| 200 | DA115 | 310 | 142 | 137 | 163.5 | 225 | 172 | 60 | 1/4" |
| 250 | DA125 | 340 | 154 | 148 | 190.5 | 257 | 184 | 68 | 1/4" |
| 300 | DA145 | 401 | 179 | 168.5 | 230 | 302 | 209 | 78 | 1/4" |
| 350 | DA160 | 430 | 192 | 186.5 | 267 | 368 | 222 | 78 | 1/4" |
| 400 | DA180 | 482 | 222 | 204 | 297 | 400 | 252 | 102 | 1/4" |
| 450 | DA200 | 532 | 244 | 224 | 318 | 422 | 274 | 114 | 1/4" |
| 500 | DA240 | 662 | 288 | 266 | 348 | 480 | 308 | 127 | 1/4" |
| 600 | DA270 | 730 | 323 | 306 | 444 | 562 | 353 | 154 | 1/4" |
All dimensions in mm unless shown otherwise. Dimensions 'D1" and 'M' depend upon the flange standard chosen. Please see reference to the flange standards here.
Size 50mm to 600mm
Body FBE coated Cast Iron
Seat EPDM
Disc 316 Stainless Steel
Pressure Up to 16 BAR (depending upon size)
Actuation Double Acting Pneumatic
