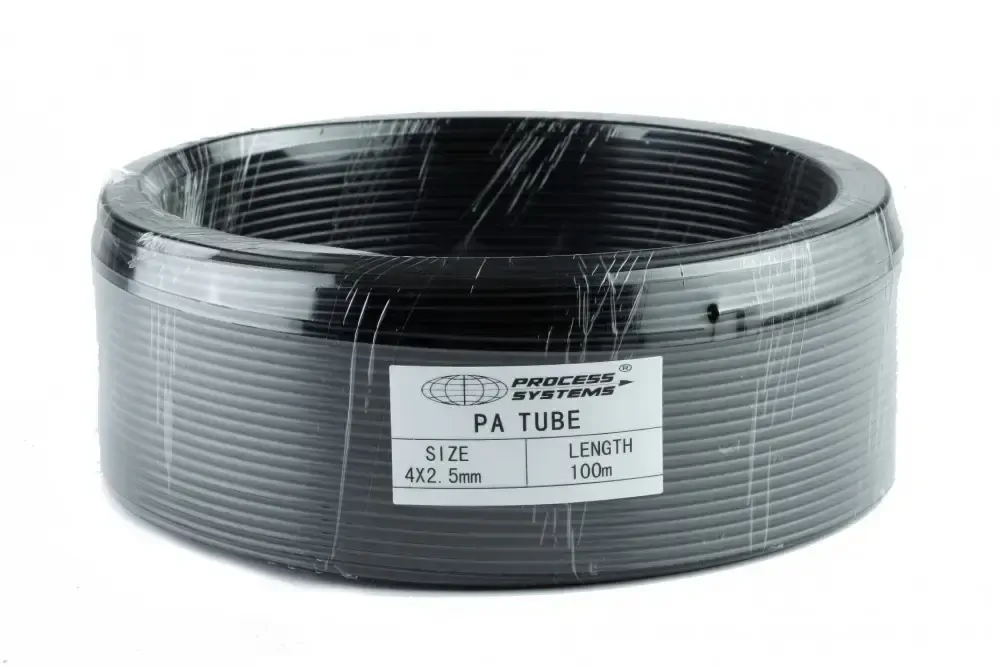

Black Nylon Tubing (Nylon 6) great for running supply air lines or cabinetry work. 20 BAR (@ 20°C ) working pressure with a -10°C to 100°C temperature range. UV stabilized.

Outside Diameter (mm) Inside Diameter (mm) Wall Thickness (mm) Tensile Strength (kgf/cm²) Working Pressure (BAR) Bursting Pressure (BAR) Bending Radius (mm)
4 2.5 .75 13 20 45 20
6 4 1 34 20 53 40
8 6 1 43 20 47 50
10 7.5 1.25 70 20 46 65
12 9 1.5 101 20 47 70
16 13 1.5 101 20 47 76

Size 4mm, 6mm, 8mm, 10mm, 12mm, 16mm
Function UV Stabilized Nylon Air Line
Length 5m, 10m, 20m, 100m, 200m
Pressure Range 0 to 20 Bar
Media Air
