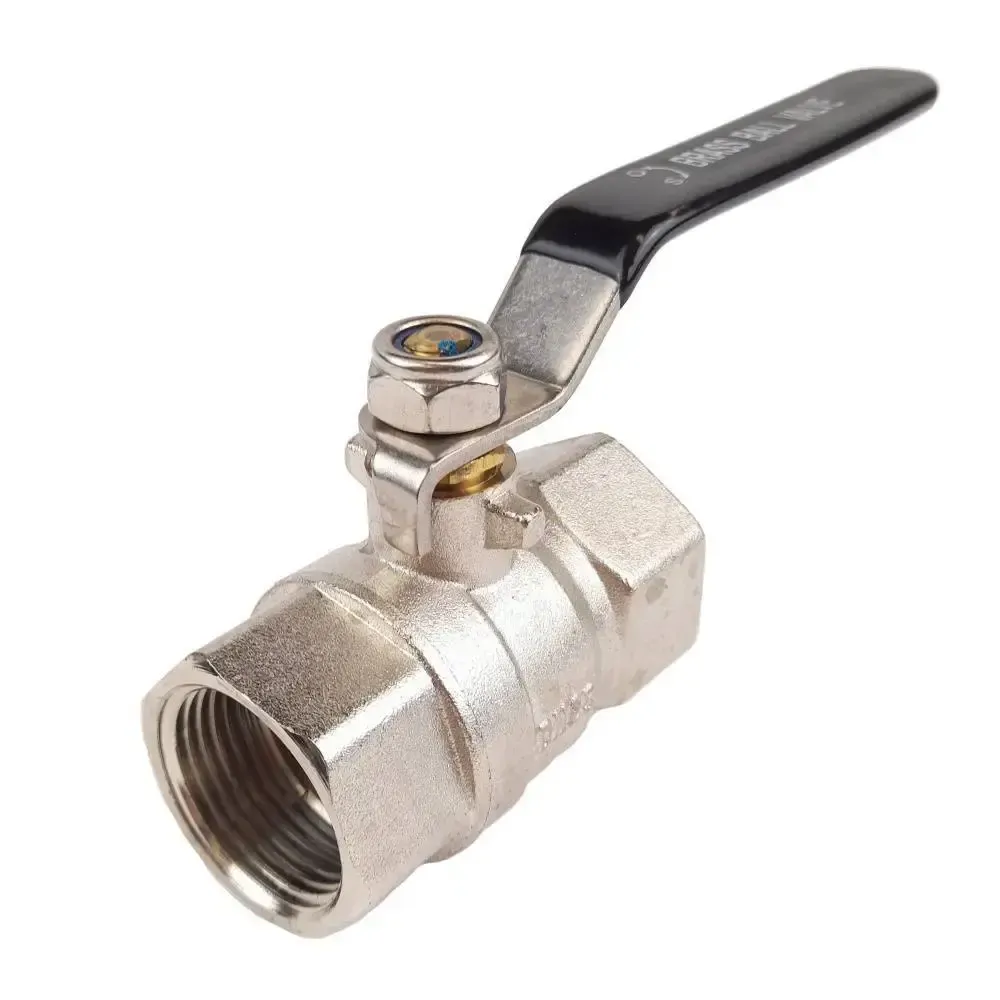

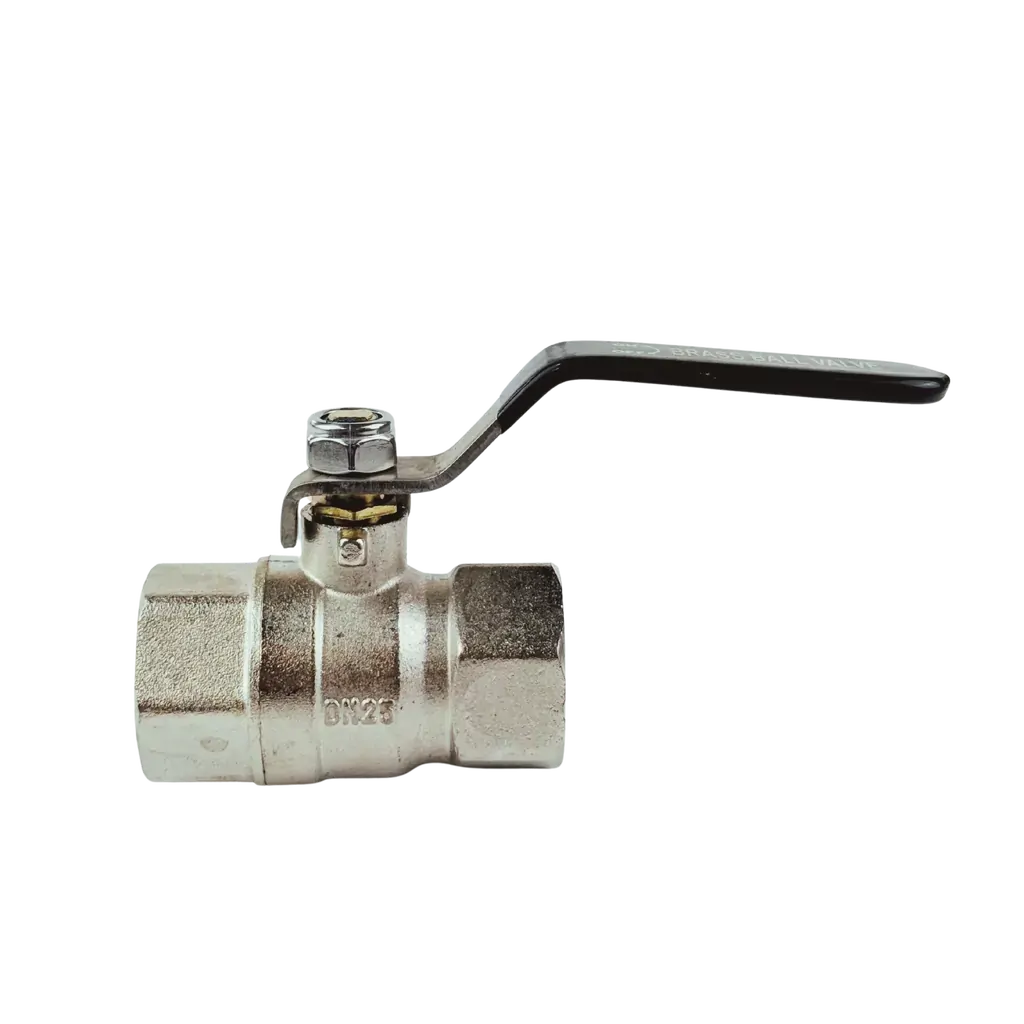

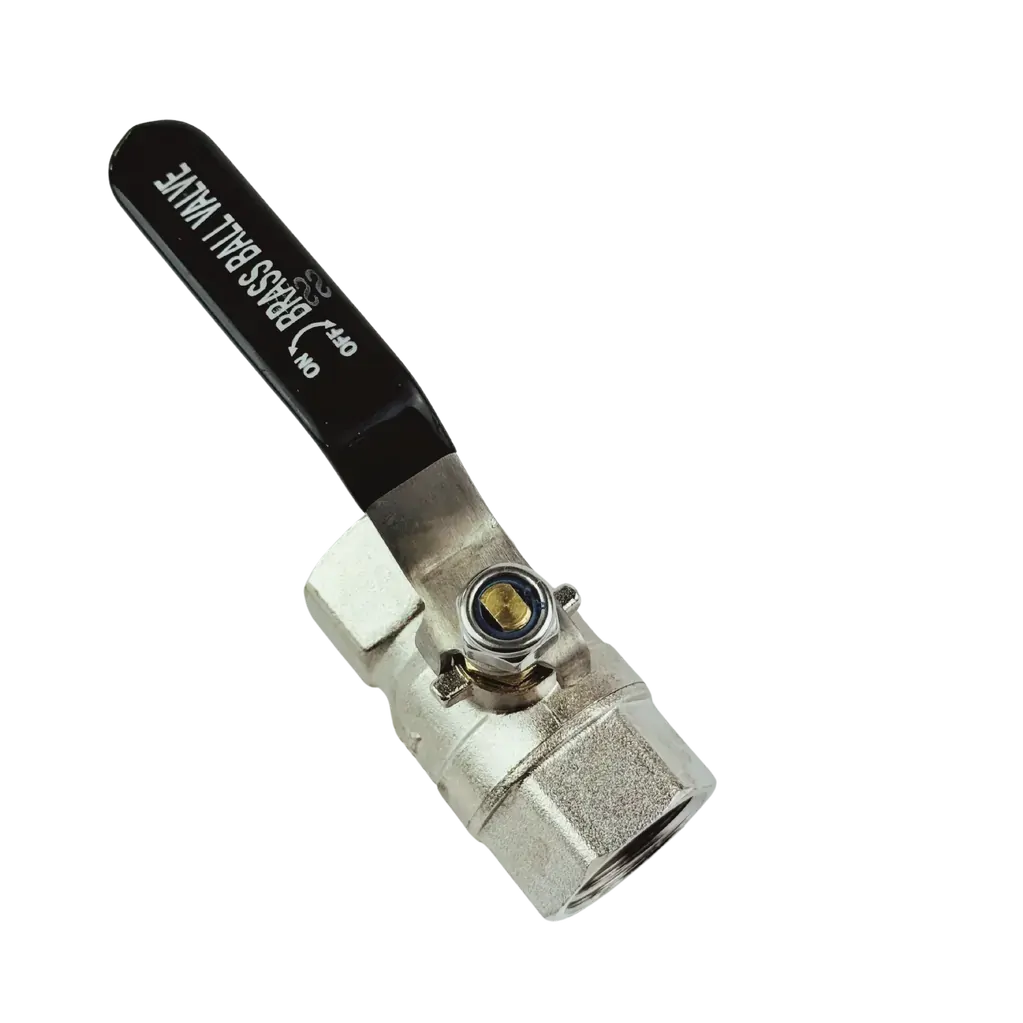

Nickel Plated Brass two way two piece manual ball valve with lever operation. Ideal ball valve for general use manual operations such as line isolation and stop start applications. Gland Seal with lever (not lockable). All thread lenghts are qualified ensuring positive seal and longer life span. Threads conform to ISO 7.1 Sealing Threads.

Model Size (BSP) Orifice (mm) Media Pressure Media Temperature
BVB2B-L-T 1/4 10 0 to 16 BAR 0°C to 80°C
BVB3B-L-T 3/8 10 0 to 16 BAR 0°C to 80°C
BVB4B-L-T 1/2 14 0 to 16 BAR 0°C to 80°C
BVB5B-L-T 3/4 19 0 to 16 BAR 0°C to 80°C
BVB6B-L-T 1 23 0 to 16 BAR 0°C to 80°C
BVB7B-L-T 1 ¼ 30 0 to 16 BAR 0°C to 80°C
BVB8B-L-T 1 ½ 36 0 to 16 BAR 0°C to 80°C
BVB9B-L-T 2 47 0 to 16 BAR 0°C to 80°C
BVB10B-L-T 2 ½ 58 0 to 16 BAR 0°C to 80°C
BVB11B-L-T 3 70 0 to 16 BAR 0°C to 80°C
BVB12B-L-T 4 90 0 to 16 BAR 0°C to 80°C

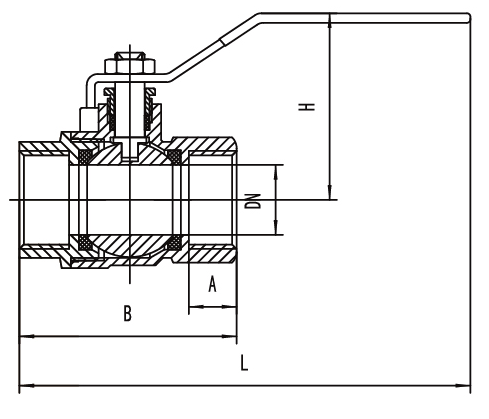

Nickel Plated Brass Ball Valve Dimensions

Size DN A B H L
1/4" 10 13.5 52 42 130
3/8" 10 13.5 52 42 130
1/2" 14 17 59 51 122
3/4" 19 18 68 55 126
1" 23 21 79 65 165
1 1/4" 30 22 89 80 185
1 1/2" 36 24 100 82 193
2" 47 26 116 97 228
3" 70 27 147 123 352
4" 90 30 174 147 360

All dimensions in mm unless shown otherwise.

Size 1/4" to 4" BSP
Body Nickel Plated Brass 2 piece
Seat PTFE
Pressure 16 BAR
Temperature 0°C to 80°C
Actuation Lever
