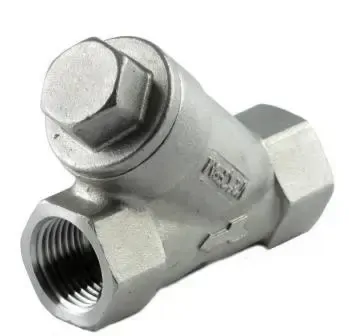

316 Stainless Steel Y strainer for media up to 54 BAR. Features a 1mm stainless steel mesh screen on a 60 degree angle to effectively remove suspended particles. Great for screening a line before a control valve or too stop contaminates spreading further down your line and potentially damaging property.

Model Size DN (mm) Media Pressure Media Temperature
YSS-04 ½” 15 0 to 54 BAR -20°C to 180°C
YSS-05 ¾” 20 0 to 54 BAR -20°C to 180°C
YSS-06 1” 25 0 to 54 BAR -20°C to 180°C
YSS-07 1 ¼” 32 0 to 54 BAR -20°C to 180°C
YSS-08 1 ½” 40 0 to 54 BAR -20°C to 180°C
YSS-09 2” 50 0 to 54 BAR -20°C to 180°C

Threaded Stainless Steel Y Strainer Pressure vs Temperature

Threaded Stainless Steel Y Strainer

Model Size L H d d1 W Weight (kg)
YSS-04 ½” 64 45 15 1 2 0.21
YSS-05 ¾” 80 52 20 1 2 0.38
YSS-06 1” 90 68 25 1 2 0.67
YSS-07 1 ¼” 106 70 32 1 2 0.7
YSS-08 1 ½” 119 80 38 1 2 1.1
YSS-09 2” 140 98 50 1 2 1.8

All dimensions in mm unless shown otherwise.

Threaded Stainless Steel Y Strainer

Number Name Material
1 Body CF8M
2 Screen SS316
3 Body Gasket PTFE
4 Cap CF8M

Size 1/2" to 2" BSP
Body 316 Stainless Steel
Mesh Stainless Steel
Pressure Range 0 to 54 BAR
Factory Accredited CE, ISO 9001
