316 Stainless Steel Wafer Swing Check valve to suit a wide range of flange standards including ANSI150 & DIN PN10/PN16. 316 Stainless Steel body, disc and stem with a FKM Seat (other seat materials available upon request). Up to 16 BAR pressure range and media temperatures from -20°C to 180°C. Face to face DIN3202-K3. Pressure tested to AP1598. Great for back flow prevention in a variety of liquid and gas applications including water treatment and gas industries. Must be mounted in a horizontal plane.

Model Size DN Pressure Temperature Weight (kg)
SCVS-50 2” 50 0 to 16 BAR -20°C to 120°C 0.8
SCVS-65 2 ½” 65 0 to 16 BAR -20°C to 120°C 1.1
SCVS-80 3” 80 0 to 16 BAR -20°C to 120°C 1.3
SCVS-100 4” 100 0 to 16 BAR -20°C to 120°C 2.3
SCVS-125 5” 125 0 to 16 BAR -20°C to 120°C 3.2
SCVS-150 6” 150 0 to 16 BAR -20°C to 120°C 4.6
SCVS-200 8” 200 0 to 16 BAR -20°C to 120°C 7.7
SCVS-250 10” 250 0 to 16 BAR -20°C to 120°C 12.7
SCVS-300 12” 300 0 to 16 BAR -20°C to 120°C 20

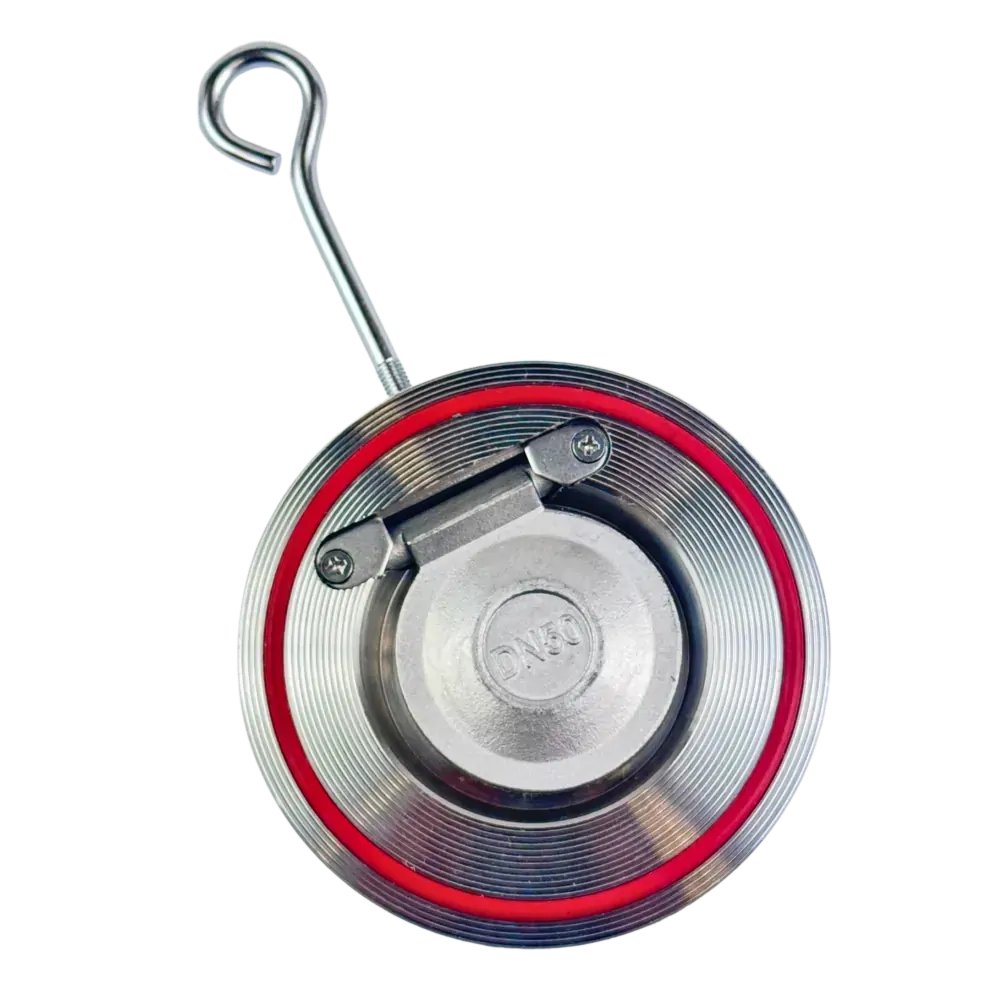

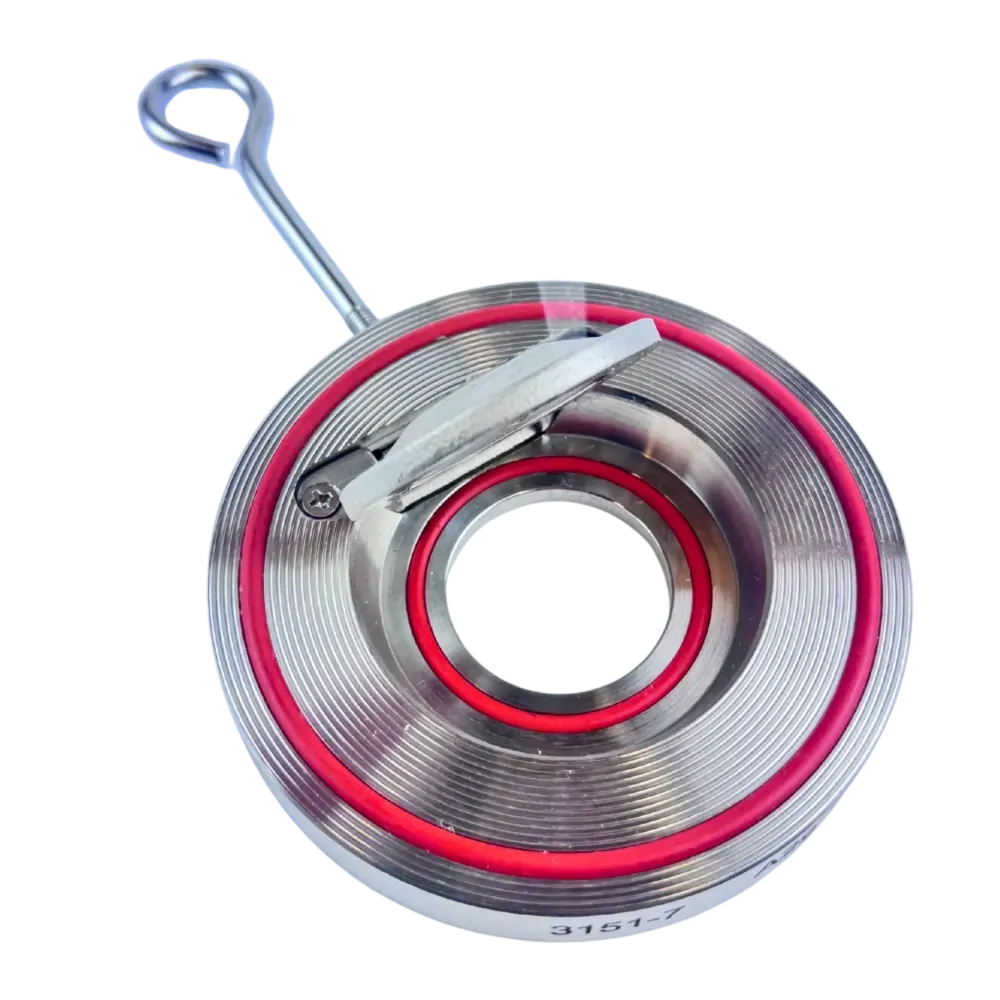

Stainless Wafer Swing Check Valve

Wafer Stainless Steel Check Valve

Model Size DN d D D1 H
SCVS-050 2" 50 32 96 84 14
SCVS-065 2-1/2" 65 40 110 96 14
SCVS-080 3" 80 54 128 117.5 14
SCVS-100 4" 100 70 156 148 18
SCVS-125 5" 125 92 187 166 18
SCVS-150 6" 150 114 213 197 20
SCVS-200 8" 200 154 267 249 22
SCVS-250 10" 250 200 328 310 26
SCVS-300 12" 300 230 375 358 30

All dimensions in mm unless shown otherwise.


Wafer Stainless Steel Check Valve

Item Part Material Qty
1 Body F316 1
2 Disc CF8M 1
3 O-ring Viton 1
4 O-ring Viton 2
5 Hook SS304 1
6 Axis Stopper SS316 2
7 Axis Screw SS316 2

Size 50mm to 600mm
Body 316 Stainless Steel
Seat FKM
Pressure Range 0 to 16 BAR
Temperature -20°Cto 120°C
