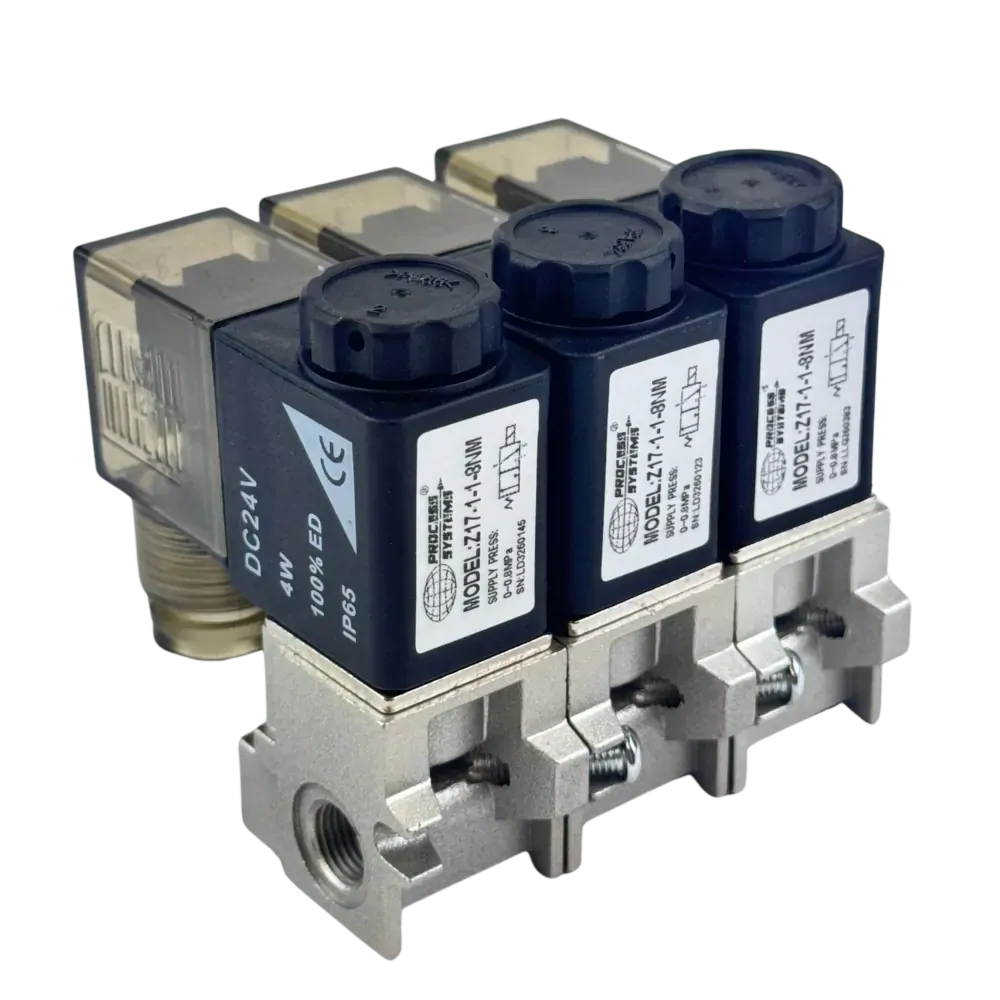

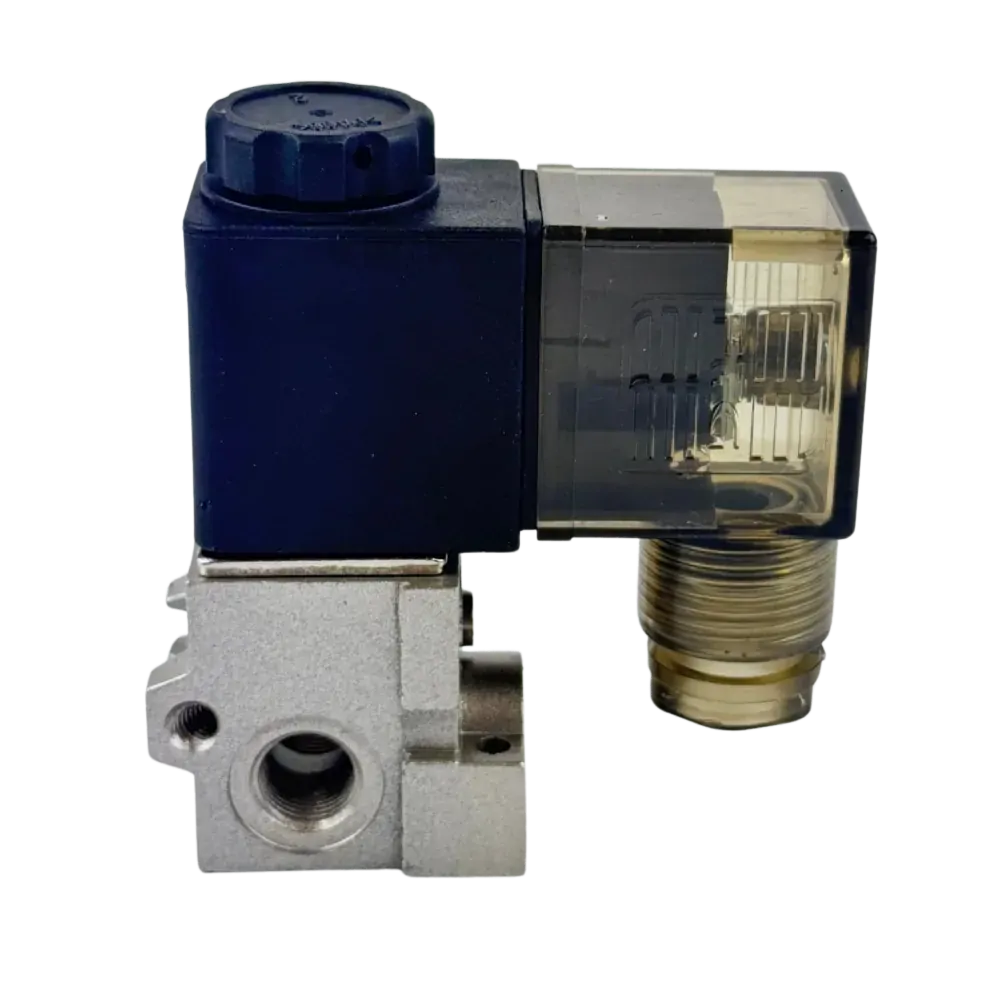

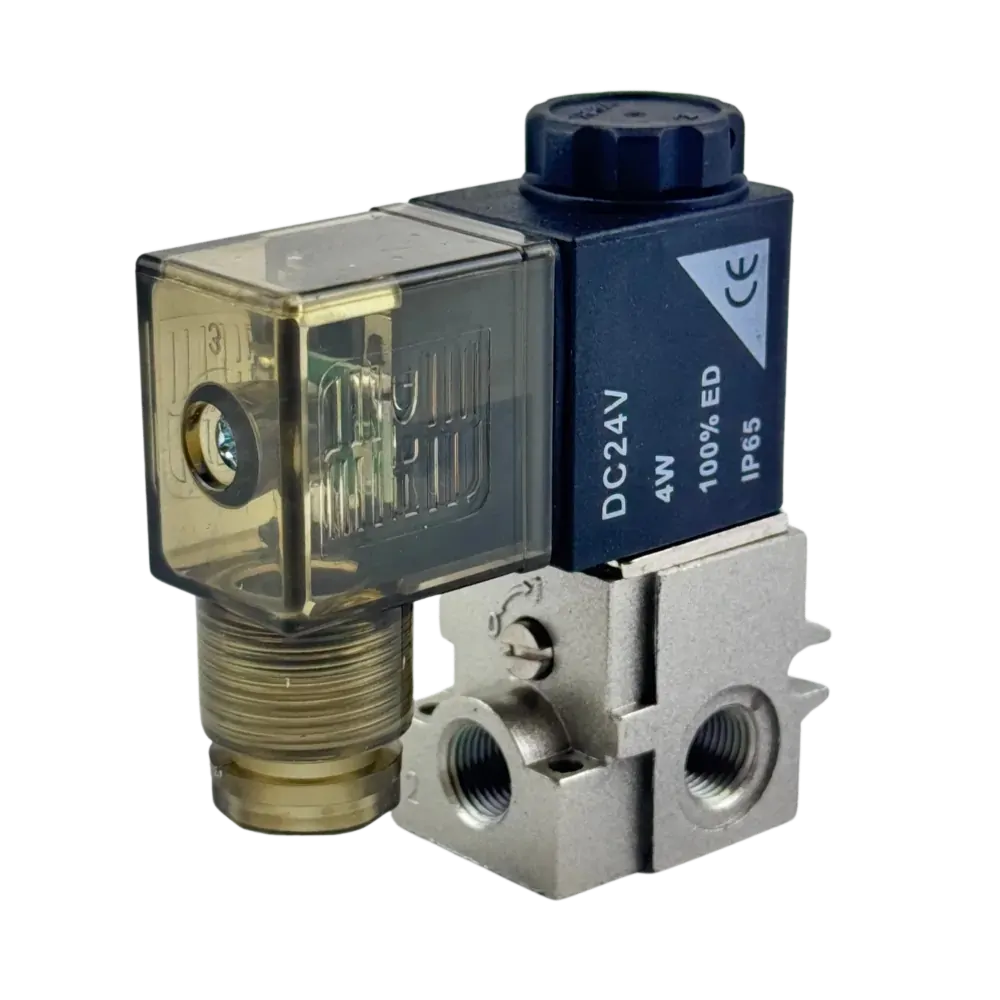

Three way direct acting die cast zinc solenoid valve. This valve features a stackable body with a manual override and LED connector plug as standard. Typical applications include signal or command control of larger valves or direct operation of small air cylinders. Available in 1/8” BSP ports only and in all voltages. Threads conform to ISO 7.1 Sealing Threads.

Model Port Size Orifice ømm CV Media Pressure Media Temperature Weight Kg Coil Specifications
Z17-1-1-*VM 1/8” BSP 1 0.08 0 to 10 BAR -5°Ct o 80°C 0.5 SC-A1
6 Volt Amps
5 Watts
Class F Insulation
100% ED

*Voltages available; 12vDC, 24vDC, 24vAC, 110vAC, 240vAC

For Installation and Maintenance instructions please click here or find in our References section under Valve Installation and Maintenance for Solenoid Valves.

3 way normally closed zinc solenoid valve

A B C D E F G
25 30 59 80 9 18 3

All Dimensions in mm.

3 way normally closed zinc solenoid valve construction

Size 1/8" BSP only
Function 3 way normally Closed (power to open)
Valve Operation Direct Acting
Body Die Cast Zinc
Seat FKM
Pressure Range 0 to 10 BAR
Media Air
