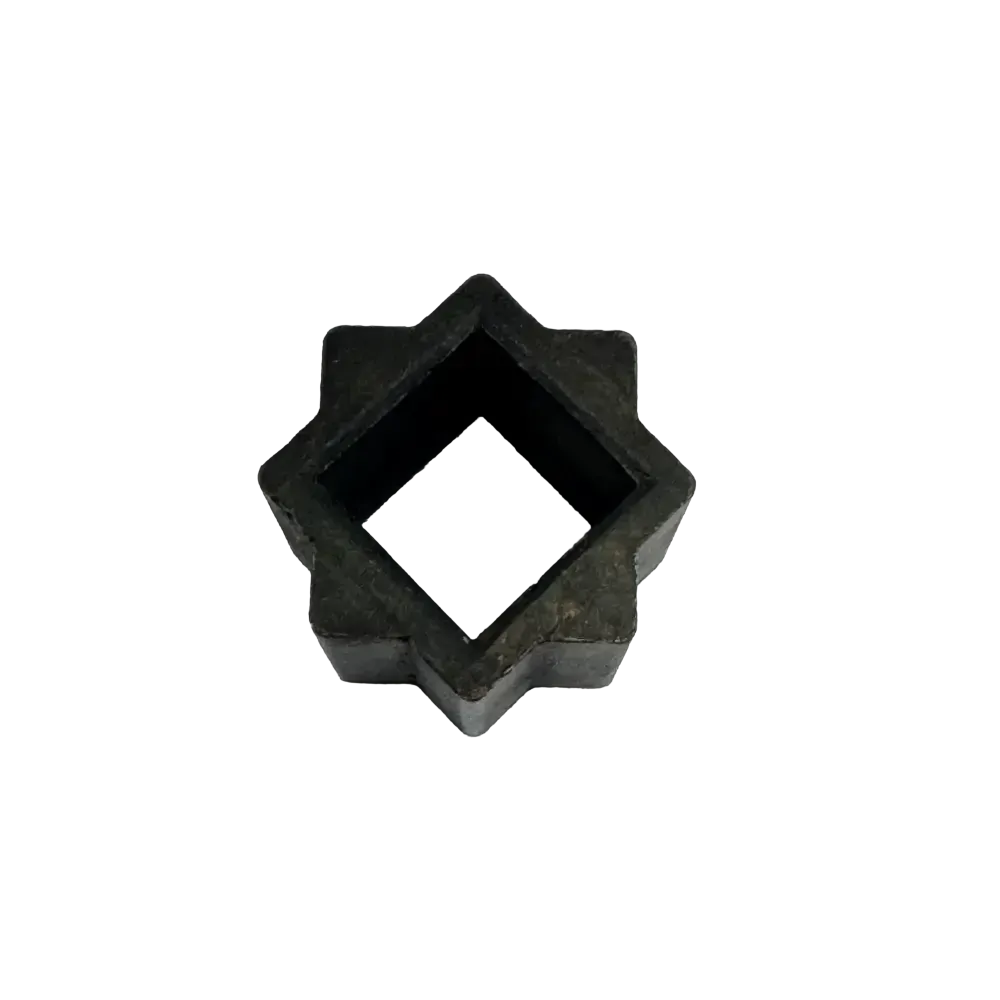

Sleeves that are used to insert into actuator to reduce the size of the female drive to fit onto the male drive/shaft a valve (most commonly ball, butterfly or gate valve). Come in all common sizes.

Model A ⌀B C ⌀D Length
ST11-9STARDRIVE 11 14.9 9 12.5 13
ST14-9STARDRIVE 14 18.2 9 12.5 16
ST14-11STARDRIVE 14 18.2 11 15.2 16
ST17-9STARDRIVE 17 22.2 9 12.5 19
ST17-11STARDRIVE 17 22.2 11 15.2 19
ST17-14STARDRIVE 17 22.2 14 19.2 19
ST19-11STARDRIVE 19 25.2 11 15.2 21
ST19-14STARDRIVE 19 25.2 14 19.2 21
ST19-17STARDRIVE 19 25.2 17 23.2 21
ST22-14STARDRIVE 22 28.2 14 19.2 24
ST22-17STARDRIVE 22 28.2 17 23.2 24
ST22-19STARDRIVE 22 28.2 19 26.2 24
ST27-17STARDRIVE 27 36.2 17 23.2 29
ST27-22STARDRIVE 27 36.2 22 29.2 29
ST36-19STARDRIVE 36 48.2 19 26.2 38
ST36-22STARDRIVE 36 48.2 22 29.2 38
ST36-27STARDRIVE 36 48.2 27 37.2 38
ST46-27STARDRIVE 46 60.2 27 37.2 48
ST46-36STARDRIVE 46 60.2 36 49.2 48

Size 11mm to 46mm
Body Cast Steel
Function Star drive adaptor sleeve
Factory Accredited CE, ISO 9001, TUV
